DCM (USB 2.0) Digital Video Cameras for Microscopes




The DCM video cameras are digital video cameras specially designed for microscopes. They work perfectly with all kinds of optical microscopes, such as biological microscopes, metallurgical microscopes and stereomicroscopes. The images of the observed specimen or samples can be genuinely displayed on the computer screen. The powerful software ScopePhoto included with the camera ensures simple and convenient operation on the images captured from a microscope.

Specifications

Model

DCMC130

DCMC200

DCMC300

DCMC500

Price

Discontinued
Discontinued
Discontinued
$195

Image Sensor

1/2" CMOS

1/3" CMOS

1/2" CMOS

1/2.5" CMOS

Pixel Size

5.2μm X 5.2μm

2.8μm X 2.8μm

3.2μm X 3.2μm

2.2μm X 2.2μm

Sensitivity

1.8v/lux-sec @550nm

1.0v/lux-sec @550nm

1.0v/lux-sec @550nm

1.0v/lux-sec @550nm

Max Resolution

(Hardware)

1280 X 1024

1.3M pixels

1600 X 1200

2M pixels

2048 X 1536

3M pixels

2592 X 1944

5M pixels

Speed          (Depend on the PC)

20frames/sec @1280 X 1024

6frames/sec @1600 X 1200

4frames/sec @2048 X 1536

2frames/sec @2592 X 1944

Dynamic Range

62dB

71.5dB

62dB

75dB

Exposure

ERS (Electronic Rolling Snap)

White Balance

Automatic / Manual

Auto-exposure

Automatic / Manual

Image Output

USB2.0, 480Mb/s

Power Supply

USB

Programmable Control

Image size, brightness, gain, exposure time

Working Temperature

-30C ~ 70C

Lens mount

C / CS mount

Camera body

Metal body painted in black, 60mm cylinder shape

Camera Size

41 X 50 X 50 (mm)

USB Cable

USB cable, length 1.5m

Operation System

Windows 2000 and Windows XP (SP2)

Software

Image-processing software ScopePhoto.

Driver, which supports DShow & TWAIN interface, output data BMP. TIFF, JPG, PICT, PTL etc.

Mounting port

microscope ocular tube or trinocular port, 23.2mm mounting barrel

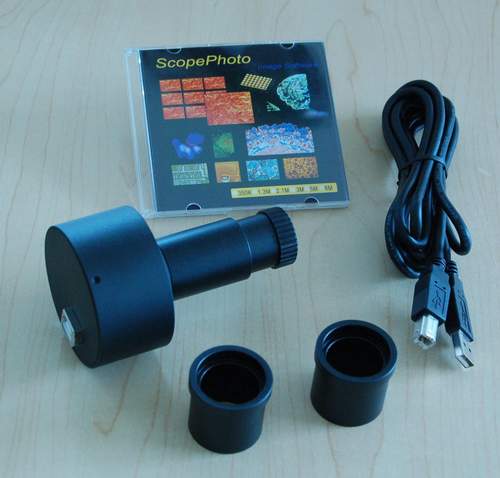

Accessories

2 adaptors for stereomicroscope, included with the camera diameter 30mm and 30.5mm

Downloads
DCMC130
DCMC200
DCMC300
DCMC500
zip file does not open? please use winzip.




Features
1) The DCM USB microscope video cameras employ newly designed optical system of fully coated, based on MTF (modulation Transfer Function) analysis, for improved image flatness and contrast. The images are brighter and distinct even at the periphery of the view field. They offer excellent performance combined with plan-achromatic objectives system microscopes. They are specially designed for microscopes with the special optical specifications of microscopes in mind, such as eyepiece view field of WF10x-18mm and the parfocalization of objectives.

2) They provide a wide view field, which closely matches the microscope's view field of 18mm.

3) These video cameras can be inserted directly into the ocular-tube of video port of the microscope, no matter monocular head, binocular head or trinocular head. With the included adaptors of φ30mm or φ30.5mm, it can also be used on a stereomicroscope.

4)Strong metal body.

5) True color

Introduction about software ScopePhoto
ScopePhoto is an image processing software professionally designed for digital cameras, including DCM130, DCM200, DCM300, and DCM500. In addition to basic image file operations and processing, ScopePhoto has the following characteristic specially designed for scientific analysis. The main functions of ScopePhoto are listed below:

a) Image archival with data attachment (*.PTL format, other formats are also supported)

b) Image capture through VFW and Twain interface

c) Image cut-&-paste from image to image, image to file

d) Image basic operations like other similar software are included in the image menu. At here you can adjust the image at ease

e) Image layer operation specially designed for the measurement operation (Layer technique is used to separate the measured results and the different results can be put on different layers)

f) Image processing filter for noise reduction and enhancement (image enhancement filters. edge enhancement filters, morphology operation filters. user defined kernel filter, include convolution and morphological filters)

g) Image arithmetic operation between image and image, image and digital number (including AND, OR, XOR, NAND, NOR, NOT, Add, Subtract, Multiply, Divide, Absolute, Min, Max, Average, Invert, Logarithm, Exponential, Square Root, Square, X to the power of Y operation)

h) Image pseudocode, range, segmentation operations are also include in the application

i) Image zooming and panning operations

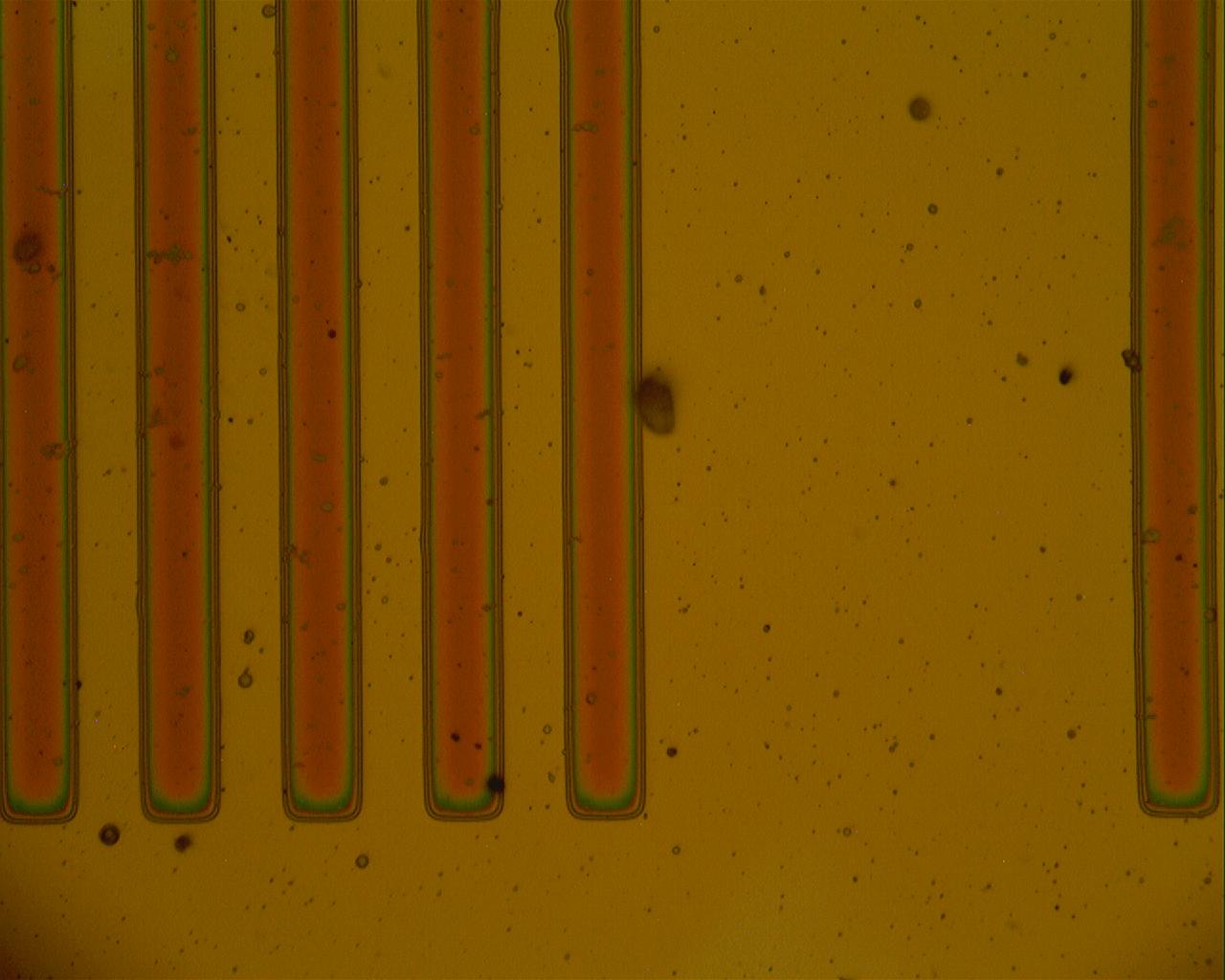

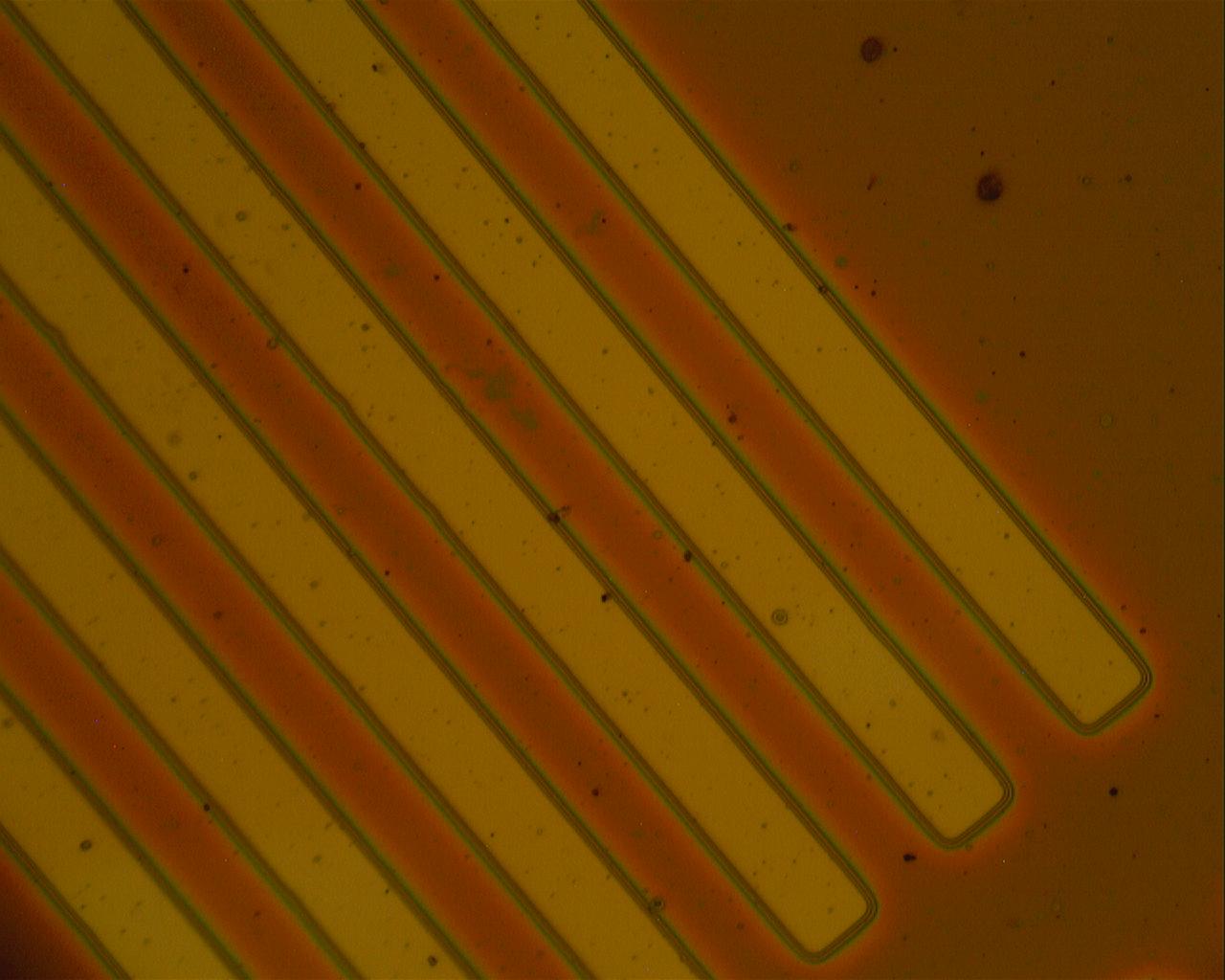

Sample Captured Pictures

DCM130 Sample Pictures
DCM300 Sample Pictures
