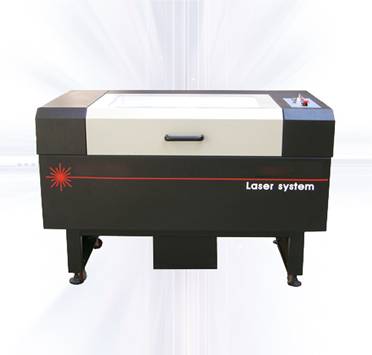

E9060 laser engraving and cutting machine



Features:
1. Streamlined design
2. Ease of loading and unloading.
3. USB connection
4. LCD operation panel
5. Inside illumination
6. Safe sealing

Applicaton:
Engraving for crafts, woodworks, badges, nameplates, portraits, glass, leather, etc.

Specifications:
Engraving area: 900x600mm
Laser power: 60W

External dimension: 2100×1750×1120mm
Net weight: 250kg
Power consumption: <1500W
Laser Tube Type: Sealed-off CO2 Lasers ,Cooling water, 10.6µm
Laser Capability Control: 1~100% by software
Engraving speed: 0~1200mm/s
Resolution: <0.025mm
Mini character size: 1×1mm
Engraving Depth: 0~20mm
Highest scanning precision: 0.025mm(1200dpi)
Power supply: AC220V±10% 50Hz
Operating temperature : 0~45C

Image formats supported: BMP
,JPEG,GIF,TIFF,PCX,PLT,AI,TGA,DXP
Auxiliary equipments: Exhaust-fans. Air-exhaust pipe
Operating humidity: 5%~95%
CCD Resolution: 1.3X107--3.2x107 PIXELS


Work samples
