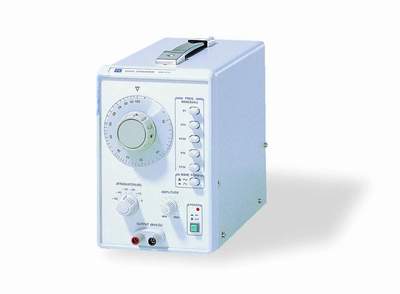

Instek GAG-810 Audio Generator





FEATURES:
Frequency from 10Hz ~ 1MHz
0.02% Low sine wave distortion
6 steps output attenuator
EXT SYNC Function

Data Sheet   User Manual

    SPECIFICATIONS

     SINE WAVE CHARACTERISTIC
      Frequency Range 10Hz ~ 1MHz, 5 ranges
      Frequency Indicator Dial Scale
      Frequency Accuracy ±(3% + 1Hz)
      Output Voltage 5 Vrms (600Ω load)
      Frequency Response 10Hz ~ 1MHz ±0.5dB (at 600Ω load)
Reference Frequency (1kHz)
      Distortion Factor 500Hz ~ 20kHz, 0.02% or less
100Hz ~ 100kHz, 0.05% or less
(x 10 range for 100Hz, x 1k range for 100kHz)
50Hz ~ 200kHz, 0.3% or less
20Hz ~ 500kHz, 0.5% or less
10Hz ~ 1MHz, 1.5% or less

     SQUARE WAVE
      Output Voltage 10Vp-p or more
      Overshoot 2% or less (at 1kHz, max output)
      Sag. 5% or less (at 50Hz)
      Rise & Fall Time Less than 200nS
      Duty Ratio 50% ±5%

     EXT. SYNCHRONIZATION
      Synchronizing Range ±5% / Vrms
      Max. Allowable Input 15V (DC + AC peak)
      Input Impedance 150kΩ

     OUTPUT
      Output Impedance 600Ω±10%
      Output Attenuator 0, -10, -20, -30, -40, -50dB
6 ranges (accuracy ±1dB at 600Ω load)

     POWER SOURCE AC 100/120/220/240V ±10%, 50/60Hz

     ACCESSORIES Power cord x 1,
Instruction manual x 1,
Test Lead GTL-103 x 1

     DIMENSIONS & WEIGHT 132(W) x 211(H) x 297(D) mm, Approx. 2.5kg
