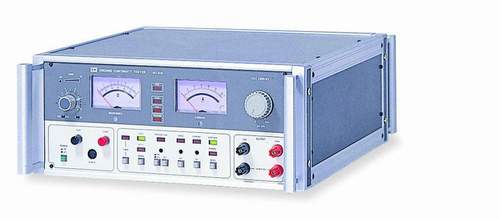

SPECIFICATIONS |
Test Current |
AC 3A
~ 32A |
|
| Test Voltage |
MAX 8V AC
Typically |
|
| Measuring Resistance
Range |
0 to
0.12Ω, 0 to 0.6Ω 2 ranges |
|
| Measuring Accuracy |
3A ~ 5A,
+10% of full scale |
| 5A ~ 32A,
+5% of full scale |
|
| Current Meter |
Indicate
the testing Current and Setting value of Warning |
|
| Resistance Meter |
Indicate
the testing Resistance and Setting value of Fail and
SUBTRACTION |
|
| Switching |
Zero-start
operating switch |
|
| Timer |
1S, 10S,
1MIN, 10MIN 4 ranges |
|
| Warning |
Monitor
the variation test current, when the test current is beyond+10% of
the setting value, the warning operation will proceed. |
| The
setting value from 3A ~ 32A |
|
| Subtraction |
The
resistance of testing line can be subtracted from the test
value |
| The
subtraction range from 0 ~ 0.1Ω |
| Accuracy
is ±10% |
|
| GO-NOGO Set |
If the
test reading value is beyond the setting value, the fail will be acting,
otherwise the pass will proceed. |
| The
setting value from 5% ~ 100% of the test range |
| Accuracy
is ±15% of full scale (3A ~ 5A)；±10% of full scale (5A ~ 32A) |
|
| Remote Control |
Input high
voltage range from 11V ~ 15V, low voltage range from 0 ~ 4V and input low
current range below 20mA |
|
| Test Mode |
Normal：if
the warning acted then the test will stop |
| Continue：if the warning acted then the test will be
continuously |
|
| Buzzer |
A Buzzer
is sounded when the test fail acted |
|
| Test Frequency |
50Hz or
60Hz independent by Line Voltage |
|
| Output Signal |
TEST, GO,
NG, WARNING, READY, MONITOR |
|
| Power Source |
AC
100V/120V/220V/240V±10%, 50/60Hz |
|
| Accessories |
Test Lead
GHT-115 x 1, Instruction manual x 1, Power cord x 1 |
|
| Dimensions &
Weight |
430(W) x
178(H) x 510(D) mm, Approx. 21kg |
|
AC 32 Amperes High test current
