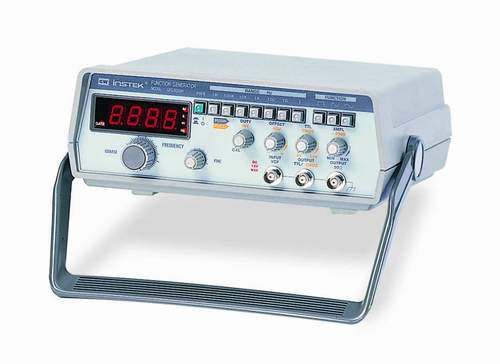

| SPECIFICATIONS |
Main
Output |
|
Waveforms |
Sine,
Triangle, Square, TTL pulse and CMOS output |
|
Amplitude |
>20Vp-p
(open circuit)； >10Vp-p (into 50Ω load) |
|
Impedance |
50Ω±10% |
|
Attenuator |
-20dB+1.0dB (at 1kHz) |
|
DC
Offset |
<-10V ~
>+10V, (<-5V ~ >+5V into 50Ω load) |
|
Duty
Control |
1 : 1 to
10 : 1 continuously rating |
|
Display |
4 digit
LED display |
|
Frequency
Range |
0.2Hz to
2MHz (7 ranges) |
|
Frequency
Control |
Separate
coarse and fine tuning |
|
| Sine
Wave |
|
|
Distortion |
< 1%
0.2Hz ~ 20kHz； < 2% 20kHz ~ 200kHz |
|
Frequency
Response |
< 0.2dB
0.2Hz ~ 100kHz； < 1dB 100kHz ~ 2MHz |
|
| Triangle
Wave |
|
Linear |
98% 0.2Hz
~ 100kHz； 95% 100kHz ~ 2MHz |
|
| Square
Wave |
|
Symmetry |
<2%
0.2Hz ~ 100kHz |
|
Rise or Fall
Time |
<
120nS |
|
| CMOS
Output |
|
Level |
4Vpp±1Vpp
~ 14.5Vpp±0.5Vpp adjustable |
|
Rise or Fall
Time |
<120nS |
|
| TTL
Output |
|
Level |
>3Vpp |
|
Rise or Fall
Time |
<30nS |
|
|
VCF |
|
Input
Voltage |
Approx.
0V~10V (±1V) input for 10 : 1 frequency ratio |
|
Input
Impedance |
10kΩ±
10% |
|
| Frequency
Counter |
|
Mode |
Internal
only |
|
Range |
0.2Hz ~
2MHz |
|
Accuracy |
±Timebase
accuracy ±1 Count |
|
Timebase |
Oscillation frequency 3.58MHz, Temp.
stability±20ppm (23°C±5°C) |
|
Resolution |
0.1Hz,
1Hz, 10Hz, 100Hz, 1kHz |
|
| Power
Source |
AC
100V/120V/220V/230V±10%, 50/60Hz |
|
|
Accessories |
Power cord
× 1,
Instruction manual × 1,
GTL-101 ×
1 |
|
| Dimensions &
Weight |
230(W) ×
95(H) × 280(D) mm, Approx. 2.1
kg |
