Test Range |
20mΩ, 200mΩ, 2Ω,
20Ω, 200Ω, 2kΩ 20kΩ 7 ranges |
Accuracy |
Measuring
20mΩ+ (0.2% rdg + 6 digits),
200mΩ~ 20kΩ+ (0.2% rdg + 4
digits),
Setting + (0.2% + 6 digits) |
Resolution |
0.01, 0.1 , 1, 10,
100mΩ, 1, 10Ω |
Display |
3 1/2 digits 0.5" LED
display;HI, GO, LO indicator |
Power
Source |
AC 115V/230V±10%,
50/60Hz |
Accessories |
Power cord
x1,
Test lead GTL-108 ×1,
Instruction manual ×1 |
Dimensions &
Weight |
230(W)×95(H)×280(D)
mm, Approx. 2kg |

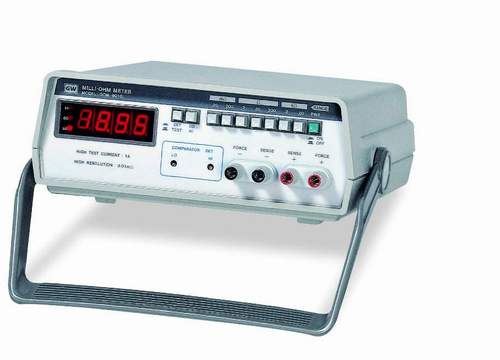

- The instrument is specially
designed for simplicity in measuring the contact resistance of switch,
relay, plug, connector, or
between
electrolytic lead leg and electrode. All the low resistance can be
measured. |
