Instek Withstanding Voltage/Insulation Tester
 Downloadable Data
Sheet
|
|
SPECIFICATIONS |
AC
HI-POT |
Voltage |
0 ~ 2.5kV, 0 ~ 5kV 2 ranges |
| AC Line waveform |
| Voltage
Regulation |
20% |
| Max.
Current |
100mA |
|
| Reference
Value |
Setting |
0.5, 1, 2, 4, 8, 10, 100mA 7 ranges, combination of
from 0.5 ~ 25.5mA ranges |
| Low
Reference |
From 0 to one-half of reference value continuously
variable |
|
|
Meter |
2.5kV, 5kV two ranges, ±3% of full
scale |
|
| Current Monitor
Meter |
±5% of full
scale |
|
| Insulation
Resistance |
DC
Voltage |
500V/1000V |
| Resistance
Range |
1 ~ 2000MΩ |
| Resistance
Accuracy |
5% ~ 10% depends on range |
|
|
Judgment |
Description |
Window comparator system |
| Accuracy |
±10% ~ ±20% depends on range |
|
|
Timer |
0.5S ~ 10MIN |
|
|
General |
Type of
Tests |
AUTO W-I, AUTO I-W, MANUAL-W,
MANUAL-I |
| Remote
Control |
Test, Reset and Timer On-Off
control |
| Output
Signal |
Test ON, GOOD, NG, and Read signal (The rating of
the contact signal are 110VAC 1A or 30VDC 1A) |
| AC
Outlet |
Use only Buzzer and warning light, the output
voltage depend on the line voltage and the current is
1A |
| Test
Mode |
Double action, good hold, momentary, NG
alarm |
|
| Power
Source |
AC 120V±10%, 50/60Hz (AC 220V/240V
order made) |
|
|
Accessories |
GHT-105 x 1,
Instruction
manual x 1,

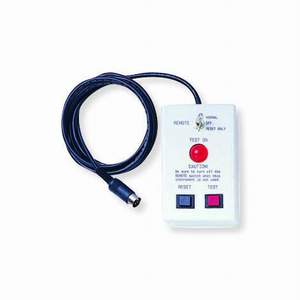

Power cord x 1 (GHT-106R for option) |
|
| Dimensions &
Weight |
430(W) x 223(H) x 510(D) mm,
Approx. 28kg |
|
Built-in Withstanding /
Insulation tester
