FEATURES：

500VA AC output

True RMS Current read-back

Arc Detection

Easy Operation

3 ranges of adjustable cut-off current

Digital display for voltage, current and timer at same time

Zero Crossing Turn-On (for GPT-805/815, GPI-825)

Automatic FAIL indicator of alarm lamp and buzzer

9 Pin PLC Control for Start, Stop and Test Result Output

General input power acceptable

Voltage output adjustable during test period

Data Sheet User Manual
SPECIFICATIONS

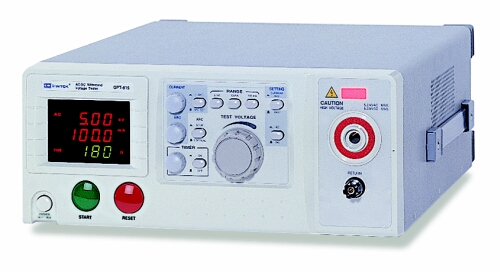

		GPT-805	GPT-815	GPI-825	GPI-826
ACW Test	Output Voltage	0.1 ~ 5kV	0.1 ~ 5kV	0.1 ~ 5kV	0.1 ~ 5kV
	V Regulation	15%	15%	15%	15%
	V Accuracy	±3% of reading ±3 counts	±3% of reading ±3 counts	±3% of reading ±3 counts	±3% of reading ±3 counts
	Trip Current, mA	0.3 ~ 100mA	0.3 ~ 100mA	0.3 ~ 100mA	0.3 ~ 20mA
	Current Accuracy	3% of reading ±2 counts	3% of reading ±2 counts	3% of reading ±2 counts	3% of reading ±2 counts

DCW Test	Output Voltage	Non.	0.1 ~ 5kV	Non.	Non.
	V Regulation	Non.	20%	Non.	Non.
	V Accuracy	Non.	3% of reading	Non.	Non.
	Trip Current, mA	Non.	0.3 ~ 10mA	Non.	Non.
	Current Accuracy	Non.	3% of reading	Non.	Non.

IR Test	Output Voltage	Non.	Non.	DC 500V/1000V	DC 500V/1000V
	V Regulation	Non.	Non.	1~2000MΩ	1~2000MΩ
	V Accuracy	Non.	Non.	1~500M:5% of reading 501M~2000M:10% of reading	1~500M:5% of reading 501M~2000M:10% of reading

Feature	Test Time	1~180sec / Continual	1~180sec / Continual	1~180sec / Continual	1~180sec / Continual
	Arc Detection	0.3 ~ 100mA	0.3 ~ 100mA	0.3 ~ 100mA	0.3 ~ 20mA
	Digital Display	V, A, Time	V, A, Time	V, A, Time	V, A, Time
	Remote Control	Yes	Yes	Yes	Yes
	Display	3 1/2 digits 0.39" LED	3 1/2 digits 0.39" LED	3 1/2 digits 0.39" LED	3 1/2 digits 0.39" LED

Power Source	AC115V or 230V, 50/60Hz, set up by manufacture

Accessories	Power cord x 1, Instruction manual x 1, Test Lead GHT-105 x 1

Dimensions & Weight	330(W) x 149(H) x 446(D) mm, Approx. 15kg (GPI-826 Approx. 12kg)
