DPL Magic / Genesis Marker

DPL Magic/Genesis Marker

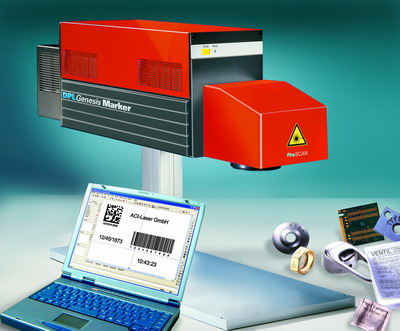

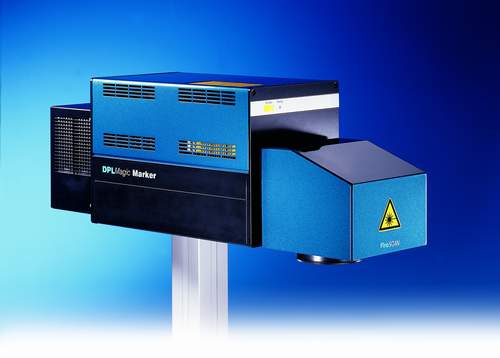

DPL Magic/Genesis Marker is the air-cooled diode pumped Nd:YAG C laser marker and sets a new standard in laser marking.

The new developed, diode pumped, solid state laser, integrated in the compact laser marker, opens up new dimensions in the field of laser marking technologies with its increased output power. Specifically for this purpose, a new resonator conception has been developed which provides at least 7W TEM  at 1064nm on the work piece. In this way, an efficiency of clearly more than 50% for optical radiation transformation is reached by adjusted overlapping of the radiation field of the laser diode and the mode volume of the solid state laser.

Because of the high quality of the laser beam and the high pulse peak power, generated by the active quality switched resonator, it is possible to mark materials of all kind, full of contrasts and fast, i.e. metal, plastic, foils, ceramics etc., it can also cut thin sheets.

Features
  • Permanent and abrasion proof marking
  • Excellent beam quality, TEM
  • High efficiency
  • Completely air cooled
  • High pulse peak power
  • Compact design
  • Best price-performance proportion
Advantages

Compactness: The combination of unique technologies of optics, electronics as well as mechanics the compact laser marking systems by ACI offer a significant advantage: Integration of all components in one unit.
The heart of the diode pumped laser markers is a miniature resonator, which can achieve a very high peak power and at the same time highest beam quality.
The electronic control unit integrated into the laser source supervises and controls the complete laser process. The user will be informed continually regarding the function of the single laser components by means of WINDOWS-based laser marking software.

Efficiency: Due to the integration of a thermoelectric air cooling and the high efficiency of the system the running costs are reduced to a minimum. The medium power consumption of the laser marking systems is in the range of 200W to 300W.

Robustness: The compact laser marking systems are designed for the use in industrial environment as well as for more shift operation. An integrated diagnostic system minimizes down-time and helps to avoid additional servicing.
Flexibility: The easy integration of the DPLMagic Marker® or the DPLGenesis Marker® into existing production lines will be realized by omission of an additional chiller and power supply unit. Due to a line voltage from 100-240VAC the systems are ready to operate world wide. To connect production line controls with the laser will be achieved by the equipped I/O-port.
As a standard equipment the laser systems come with a pilot laser for easy adjustment.

Precision: With the high beam quality the compact laser marking systems by ACI produce microprintings, graphics, bar codes, photos and logos up to 1000 dpi resolution.

Speed: The high speed scan head FireScan® offers a significant reduction of the delay times. As a result the scanning speed will be increased especially with the processing of small characters. Likewise the FireScan® guarantees positioning accuracy and repeatability.

Specification

 DPLMaigc Marker
 DPLGnesis Marker
 Laser source
 Diode pumped, active quality-switched solid state Laser (Nd:YAG)
 Wavelength
 1064nm
 Power
 3W monomode
 7W monomode
 Pumping principle
 longitudinal
 Pulse frequency
 0, 1-50KHz
 Integrated  pilotlaser
 for positioning
 650nm/1mw
 Laser Class
 4, optional Laser Protection-Housing Class 1
 Power supply module
 Power supply integrated into the laser
Multiprocessor system for control and preparation of data Integrated laser diode
 driver and TE-controller
 Integrated scanner command
 Integrated HF-driver
 Connection of all components through a Bus-
 System
 Scanhead
 Galvo scanner: FireScan®
 Aperture: 10mm
 Scan speed: < 5m/sec
 Focusing optics: optional
 F-Theta 100  F-Theta 163   F-Theta 254
 Spot diameter*        25 x 35 x  50 [m]
 Marking area     60x60      110x110    180x180 [mm x mm]
 System prerequisites
 IBM-compatible PC
 Operating system WINDOWS XP/2000/NT®
 Storage device: Harddisk, CD-Rom

 DPLMaigc Marker
DPLGnesis Marker
 Interface
 PC Interfacesserial: RS 232C
 parallel: Centronics
 Laser Control Interface for:
 Laser in function or error warning
 External Shutter-Interlock
 External Shutter warning lamp
 Start signal for start of marking
 Signal for end of marking
 Power Entry Module
 Electrical connections
 and consumption
 100-240VAC / 16A / 50-60Hz
 Power absorption (med.): 200W DPLMagic Marker®
 Power absorption (med.): 300W DPLGenesis Marker®
 Cooling: only air cooling, no water supply necessary
 Environment Temperature
 15C C 35C [62F C 98F]
 Humidity: 30 - 85%, non condensing
 Weight
 15kg
 20kg
 Dimension
 Laser source
 incl. Scanner
 583x181x220 mm
 718 x 201 x 220 mm
 Technical Drawings
 Download here
 Download here
 * Spot diameter on workpiece. Variations are possible on different materials.

Accessories

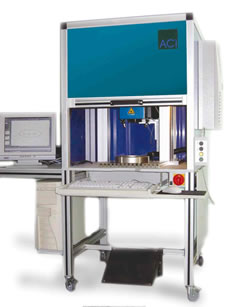

ROTARYTableRT400



The indexing rotary table RT400 is the ideal solution for small-scale and mediumscale series production. Equipped with two loading positions, the rotating table with a diameter of 400mm rotates to the next operating position in steps of 180. Laser marking and loading of the parts can be carried out simultaneously.
The laser unit is mounted on a motor-operated z-axis, so parts of different heights can be marked. Equipped with an optionally light curtain as a safety shield, the RT400 can be automated furthermore by independent rotating cycles of the table. The whole device is designed as a Table-Top-Solution according to laser protective class 1.
Download data sheet

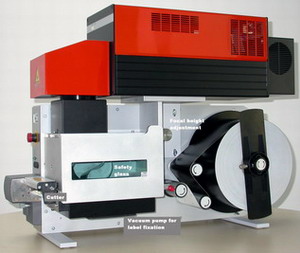

FOILStar3000



At any places where direct laser marking will not be applicable but a resistant lettering is required the FOILStar3000 offers an interesting marking alternative. Especially when it is required to be counterfeit-proof and resistant to environmental factors, foils that are able to be labelled by laser offer an optimum in the field of labelling technology.
By means of the high-integrated laser foil labelling device FOILStar3000, now, laser foils can be easily and precisely labelled. This device accepts laser foils up to a roll diameter of 300mm. The foil transport as well as the whole process are controlled by the labelling software included in the system.
This software is also used to design the labels. Fixed or variable text, codes as well logos can be created easily by using this software. The laser can also be used to cut the whole label to get the required dimensions. As a standard the FOILStar3000 is equipped with a cutter for cutting off complete labels and sets of labels.
It can always be applied where production safety and quality assurance are required or type plates or labels are necessary, maybe only for making an inventory.
Download data sheet


LIFTBoy100



The LIFTBoy100 offers a pratical solution for setting varying heights of work pieces. Due to the motor operated z-axis a variation of 100mm is possible. The height can be adjusted by using the manual control or alternative via RS232C and the marking software. To find the right focal height very easy during adjusting the device is additonally equipped with two red pilot lasers. This reduces setting time in case of frequently changing products.
The LIFTBoy100 is suitable for self configuring a manual workplace as well as for integrating the laser into a production line where a z-axis is requested.
Download data sheet


LASER Marking Workstation



The compact Laser Marking Workstation marks fast and cost-effectively individual parts or small series of products. As a desk-top device the whole equipment only needs a little space and is immediately ready to run. The thermoelectric cooling replaces the usal water cooler.
By an average power consumption of only 200W - 300W the operating costs fall to a minimum. The laser is optionally controlled manually or by software. By means of the
focus finder function parts can be arranged and aligned.
Download data sheet


INDUSTRIAL LASER Marking Workstation

The industrial laser safety case is designed as a manual workstation for small and medium scale series production. The workspace of 800x800x800mm3 offers room also for bigger work pieces. The parts can be fixed on a T-groove-plate. 300mm adjustment of the height by means of the electrical z-axis allows the marking of parts with different height and can be operated manually by up/down push button or via RS232C by the marking software.
Two red pilot lasers help to find the right focal height visually very fast. Due to lockable rollers the whole system can easily be moved to the particular place of application. For temperature stabilisation of the work area, the device is equipped with an industrial air conditioning system.
Download data sheet

For the fully-automatic marking and storing of flat materials like steel, aluminum, plastics, etc.
  • Laser protection class 1

    Max. size of plate  W X H: 100 x 50 mm

  • Min. thickness of type plate: 0,5 mm, Max. thickness of type plate: 3mm
    Max. height of input/output stack: 250 mm

  • Output device for individual orders

  • Operator control panel with clear text display

  • Indicator light to showing laser operational status

  • Integrated vacuum piping may be connected  to an external fume extractor

  • Dimensions with laser  680 x 430 x 690 mm
