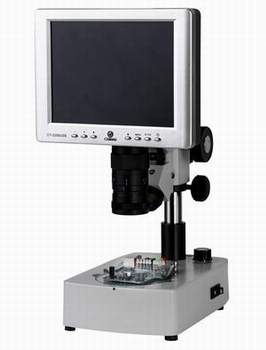

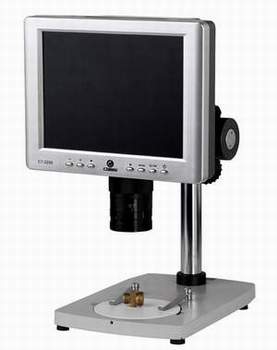

LCD Microscopes with USB computer connection
 |
 |
 |
Price: $589.00
(pricer cut)

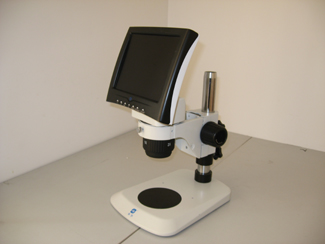

DVST60N LCD MICROSCOPE
|
Price: $1095.00
|
Device
|
1/3’
|
1/3’
|
|
Horizontal
Resolution
|
480 TV line
|
480 TV line
|
|
Pixels
|
768(H)X490(V)
|
768(H)X576(V)
|
|
Scanning System
|
525 lines/ 60 frames/ sec.
|
625 lines/ 50 frames/ sec.
|
| White Balance |
Can be switched
between auto white balance and hand white balance
|
|
Back light
compensation
|
Auto
|
|
Signal-to-Noise
|
More than 46db
|
|
Gamma
Characteristics
|
0.45
|
|
Minimum
illumination
|
3.1ux
|
|
Input voltage
|
12V DC(9V-14V)
|
|
Power consumption
|
Less than 1.85W
|
|
Dimension
|
800X600
|
800X480
|
640X480
|
|
Pixel Space Between
|
0.213mm
|
0.253
|
0.253
|
| Visual Angle |
170/170(H/V)
|
|
Horizontal
|
30~61 KHz
|
|
Vertical
|
60~75 Hz
|
| Color |
16,777,216 colors
|
|
Highest mode
|
1024X768@75Hz
|
| Sync Video Signal |
H/V Separate,TTL,P
or N.0.7Vp-p@75 ohm
|
|
Color System
|
PAL/NTSC4.43/NTSC3.58/SECAM
|
|
Sound system
|
BG/DK/I/M
|
|
Video Output
|
1.0Vp-p@75ohm
|
|
Audio Input
|
500mVrms
|
| Power Supply |
DC 12V
|
|
Power consumption
|
9W
|
11W
|
11W
|
|
Energy-saving
|
<1.0W
|
|
Operating temperature
|
10°C~40°C(50°F~104°F)
|
|
Operating humidity
|
10%~80%
|
|
Storage temperature
|
-25°C~-45°C(-13°F~113°F)
|
|
Storage humidity
|
5%~95%
|
|
Model Parts
|
4-DVST60N
|
|
Head
|
Objective
magnification
|
1X,2X (3X,4X)
|
|
Working distance
|
100mm
|
|
Observation angle
|
0º~45°
|
|
Base
|
Set the head
|
Mount the head in the bracket hole whose diameter is
F76mm
|
|
Focusing device
|
The degree of tightness is adjustable by rotating the
focusing knob.
|
|
White/black plate
|
Diameter inside hole: 100mm°
|
|
Clips
|
Put it on the base from top
|
|
