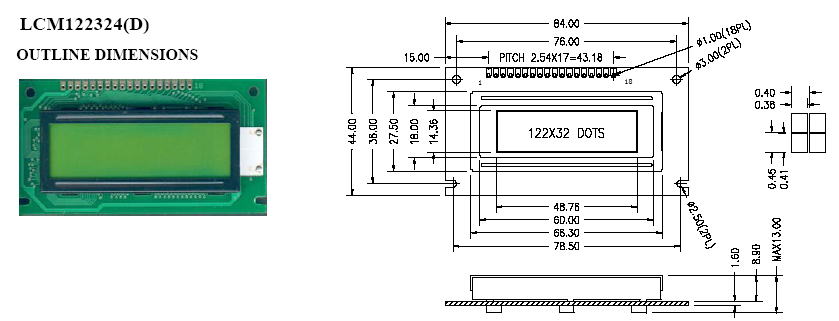

LCM122324(D)

Specification & Feature Item Normal Dimensions Feature Module size 84x44x13 LCD Type & Color STN: yellow-Green, Blue, FSTN View Area 60x18 View Angle 6 O' clock Dots x Dots 122x32 Display Type Positive Type, Negative type Dot Pitch 0.40x0.45 Control IC & Package SED1520, COB Dot Size 0.36x0.41 Operating Temperature -20°C ~ 70°C Backlight LED Storage Temperature -30°C ~ 80°C Eleetrical Characteristics Item Symbol Test Condition Typ. UNIT Operating Voltage Vdd Ta = 25°C 5.0 V Supply Current Idd Ta = 25°C, Vdd = 5.0V 0.3 mA Interface Pin Connection Pin Symbol Description 1 VDD Power Suppy for Logic 2 GND Ground for Logic 3 VICD Power Supply for LCD Drive 4 RST Reset Signal 5 E1 Enable Signal for LCM 6 E2 Enable Signal for LCM 7 R/W Read/Write Selection 8 Ao Register selection 9-16 DB0-DB7 Data Bus Lines ( 0~7 ) 17 SLA Power Supply for Backlight(+) 18 SLK Power Supply for blacklight(-)
