Specification & Feature
| Item |
Normal Dimensions |
Feature |

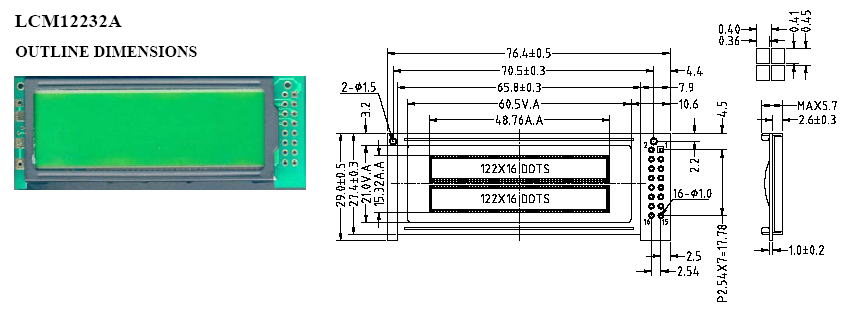

| Module size |
76.5x29x5.7 |
LCD Type & Color |
STN: yellow-Green |
| View Area |
60.5x21 |
View Angle |
6 O' clock |
| Dots x Dots |
122x32 |
Display Type |
Positive Type |
| Dot Pitch |
0.40x0.45 |
Control IC & Package |
SED1520, COB |
| Dot Size |
0.36x0.41 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
EL |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
0.5 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
VDD |
Power Suppy for Logic |
| 2 |
GND |
Ground for Logic |
| 3 |
VO |
Power Supply for LCD Drive |
| 4 |
RST |
Reset Signal |
| 5 |
E1 |
Enable Signal for LCM |
| 6 |
E2 |
Enable Signal for LCM |
| 7 |
R/W |
Read/Write Selection |
| 8 |
Ao |
Register selection |
| 9-16 |
DB0-DB7 |
Data Bus Lines ( 0~7 ) |
|
