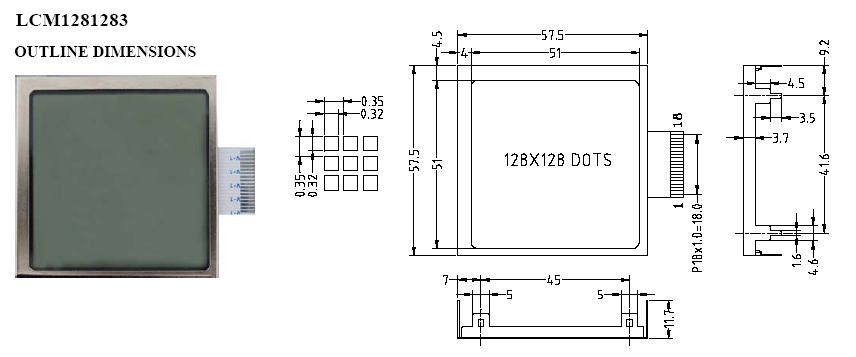

Specification & Feature
| Item |
Normal Dimensions |
Feature |
| Module size |
57.5x57.5x11.7 |
LCD Type & Color |
FSTN |
| View Area |
51x51 |
View Angle |
6 O' clock |
| Dots x Dots |
128x128 |
Display Type |
Positive Type |
| Dot Pitch |
0.35x0.35 |
Control IC & Package |
SSD1852, TAB |
| Dot Size |
0.32x0.32 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
EL |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
3.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 3.0V |
16 |
mA |
Interface Pin Connection
| Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9~12 |
13~18 |
| Symbol |
VSS |
FLM |
LP |
CP |
M |
VDD |
EL-ON |
VEE |
D3~D0 |
NC |
|
