Specification & Feature
| Item |
Normal Dimensions |
Feature |

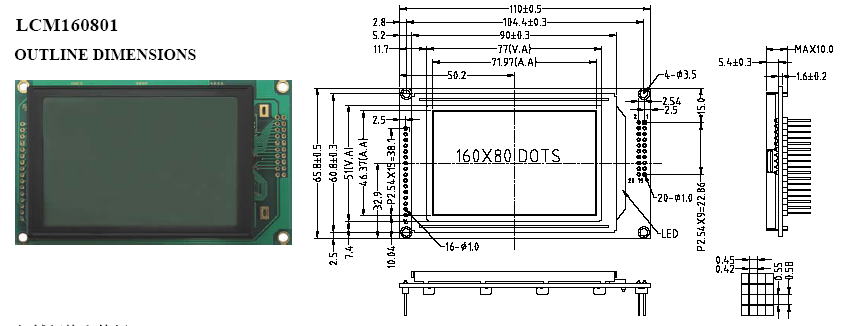

| Module size |
110x65.8x10 |
LCD Type & Color |
STN: yellow-Green, FSTN |
| View Area |
77x51 |
View Angle |
6 O' clock |
| Dots x Dots |
160x80 |
Display Type |
Positive Type |
| Dot Pitch |
0.45x0.58 |
Control IC & Package |
*, SMT |
| Dot Size |
0.42x0.55 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
LED |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
62 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
VSS |
Ground for Logic |
| 2 |
VDD |
Power Supply for Logic |
| 3 |
VO |
Power Supply for LCD Drive |
| 4 |
RS |
Register Selection |
| 5 |
/WR |
Data Write |
| 6 |
/RD |
Data Read |
| 7~14 |
DB0~DB7 |
Data Bus Lines ( 0~7 ) |
| 15 |
/RST |
Reset Signal |
| 16 |
BUSY |
Busy Signal |
| 17 |
INT |
Interrupt Signal |
| 18 |
/CS |
Chip Select Signal |
| 19 |
A |
Power Supply for Backlight(+) |
| 20 |
K |
Power Supply for Backlight(-) |
|
