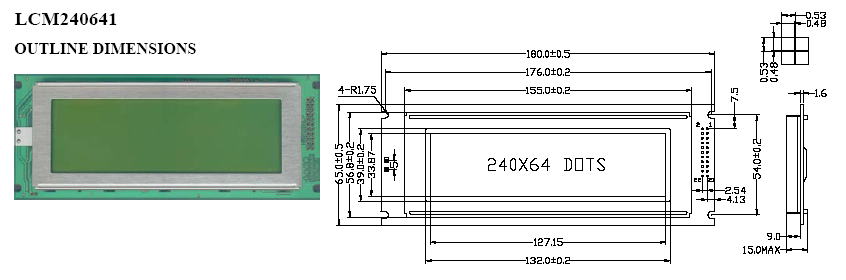

Specification & Feature
| Item |
Normal Dimensions |
Feature |
| Module size |
180x65x15 |
LCD Type & Color |
STN: yellow-Green, Blue,FSTN |
| View Area |
132x39 |
View Angle |
6 O' clock |
| Dots x Dots |
240x64 |
Display Type |
Positive Type, Negative Type |
| Dot Pitch |
0.53x0.53 |
Control IC & Package |
T6963C, SMT |
| Dot Size |
0.48x0.48 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
LED |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
3.0~5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
15 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
FG |
Frame Ground |
| 2 |
Vss |
Ground for Logic |
| 3 |
Vdd |
Power Supply for Logic |
| 4 |
Vo |
Power Supplu for LCD Drive |
| 5 |
/WR |
Write Data |
| 6 |
/RD |
Read Data |
| 7 |
/CE |
Chip Enable Signal |
| 8 |
C/D |
Register Select Signal |
| 9 |
NC |
No Connection |
| 10 |
/RST |
Reset Signal |
| 11~18 |
DB0~DB7 |
Data Bus Lines ( 0~7 ) |
| 19 |
FS |
Font Selection |
| 20 |
Vout |
Negative Voltage Output |
| 21 |
SLA |
Power Supply for Backlight(+) |
| 22 |
SLK |
Power Supply for Backlight(-) |
|
