Specification & Feature
| Item |
Normal Dimensions |
Feature |

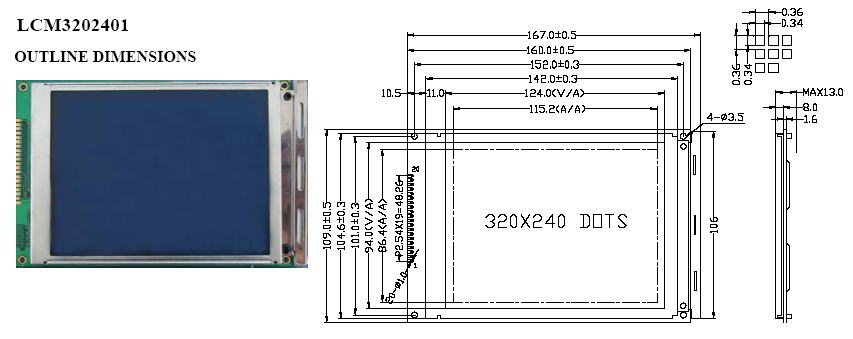

| Module size |
167x109x13 |
LCD Type & Color |
STN: Blue,FSTN |
| View Area |
124x94 |
View Angle |
6 O' clock |
| Dots x Dots |
320x240 |
Display Type |
Positive Type, Negative Type |
| Dot Pitch |
0.36x0.36 |
Control IC & Package |
SED1335, SMT |
| Dot Size |
0.34x0.34 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
LED, CCFL |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
3.0~5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
30~40 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
Vss |
Ground for Logic |
| 2 |
Vdd |
Power Supply for Logic |
| 3 |
VO |
Power Supplu for LCD Drive |
| 4 |
/WR |
Write Data |
| 5 |
/RD |
Read Data |
| 6 |
/CS |
Chip Signal |
| 7 |
Ao |
Register Selection |
| 8 |
/RST |
Reset Signal |
| 9~16 |
DB0~DB7 |
Data Bus Lines ( 0~7 ) |
| 17 |
NC |
No Connection |
| 18 |
Vout |
Negative Voltage Output |
| 19.20 |
NC |
No Connection |
|
