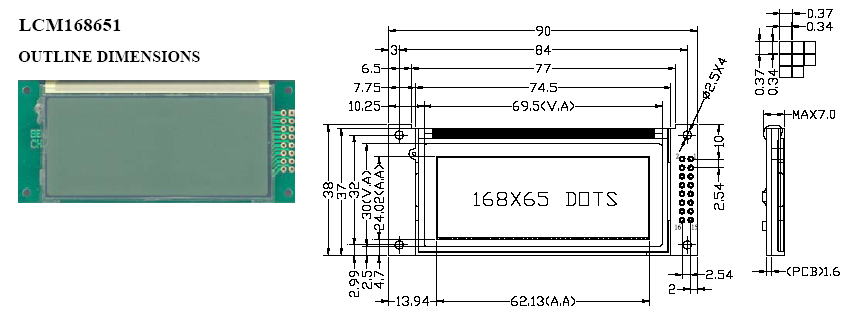

Specification & Feature
| Item |
Normal Dimensions |
Feature |
| Module size |
90x38x7 |
LCD Type & Color |
FSTN |
| View Area |
69.5x30 |
View Angle |
6 O' clock |
| Dots x Dots |
168x65 |
Display Type |
Positive Type |
| Dot Pitch |
0.37x0.37 |
Control IC & Package |
SED1575, TAB |
| Dot Size |
0.34x0.34 |
Operating Temperature |
-20°C ~ 70°C |
| Backlight |
LED |
Storage Temperature |
-30°C ~ 80°C |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
1.0 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
BL- |
Power Supply for Backlight(-) |
| 2 |
/CS1 |
Chip Select Signal |
| 3 |
/RES |
Reset Signal |
| 4 |
AO |
Register Selection |
| 5 |
/WR |
Write Data |
| 6 |
/RD |
Read Data |
| 7~14 |
DB0~DB7 |
Data Bus Lines ( 0~7 ) |
| 15 |
VCC |
Power Supplu for Logic |
| 16 |
GND |
Gound for Logic |
|
