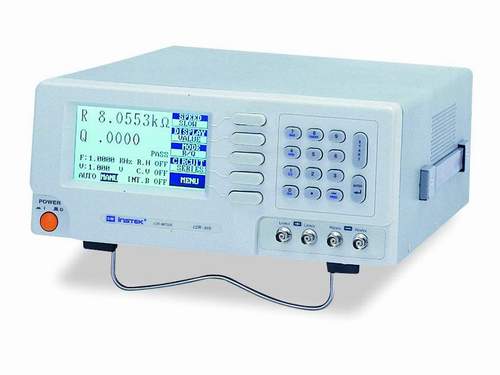

Instek LCR-817/819 High Precision LCR Meter





FEATURES:
Test Frequency: 12Hz to 100kHz(LCR-819); 12Hz to 10kHz (LCR-817)
Continuously Variable Frequencies
0.05% High Measurement Accuracy (LCR-817/819)
100 Sets Memory for Save/Recall of Setup State
R/Q, C/D, C/R, L/Q Test Modes
Absolute Value, ΔValue, and Δ% Measurement Display
240 x 128 dot Matrix LCD Display
Test Condition and Test Result shown on the screen  Simultaneously
Handler Interface (LCR-827/829)
Option: RS-232C Interface, Including LCR-Viewer Software

 Data Sheet    User Manual    Softwares

    SPECIFICATIONS

      Test Frequency

12Hz ~ 100kHz (503 steps) for LCR-819
12Hz ~ 10kHz (489 steps) for LCR-817

      Basic Accuracy 0.05%(LCR-817/819)

      Test Speed 68mS (LCR-817/819)

      Test Signal Levels 5mV ~ 1.275V (5mV/step)

      DC BIAS External 2V
  Internal 0 to 30V

      Display Range Impedance/Resistance R 0.00001Ω ~ 99999kΩ
Capacitance C 0.00001pF ~ 99999µF
Inductance L 0.00001mH ~ 99999H
Quality Factor Q 0.0001 ~ 9999
Dissipation Factor D 0.0001 ~ 9999

      Test Mode  R/Q, C/D, C/R, L/Q

      Equivalent Circuit  Parallel or serial selectable

      Memory  100 memory blocks totally

      Average  1 to 255 times

      Test Speed
SLOW, MEDIUM and FAST

      Display Mode Value, Δ, Δ%

      Display 240 x 128 dot matrix C.C.F.L back light LCD

      Interface Option: RS-232C including LCR-View Software

      Power Source 100V ~ 240V, 50/60Hz

      Accessories Power cord x 1,
Instruction manual x 1,
LCR-06A x 1
Option Fixture: LCR-05, LCR-07, LCR-08, LCR-09

      Dimensions & Weight 330(W) x 149(H) x 437(D)mm, Approx. 5.5kg



      Test Fixtures

LCR-05 LCR-06A LCR-07 LCR-08 LCR-09
