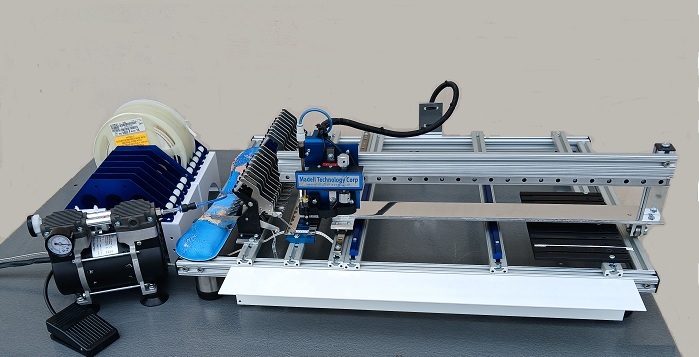

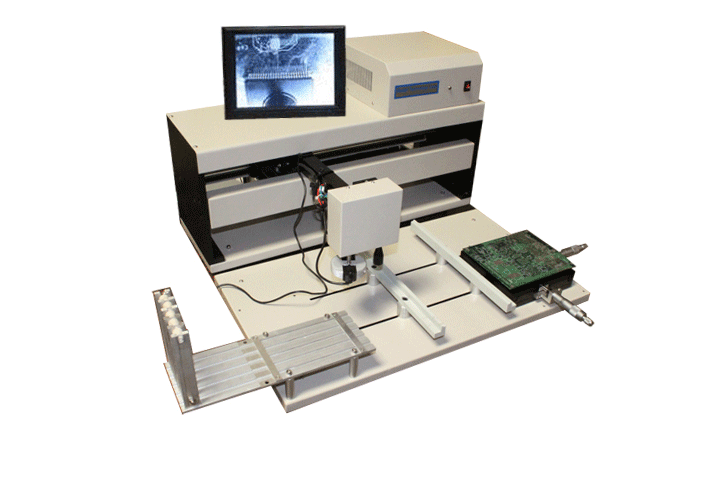

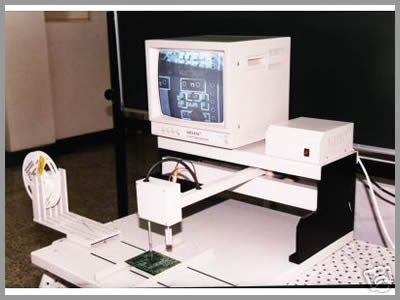

Manual Pick and Place Machine SMD-TP-VF
|
Price: $1,995.00
|
|

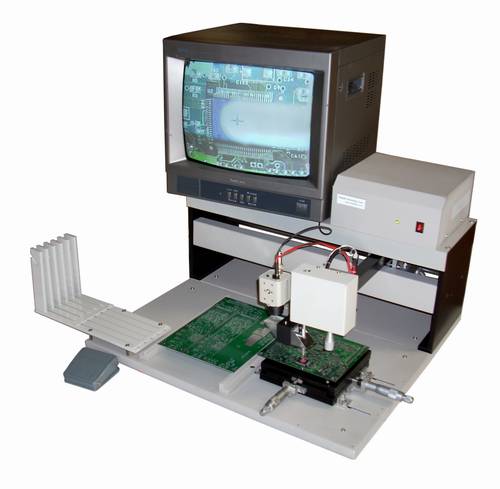

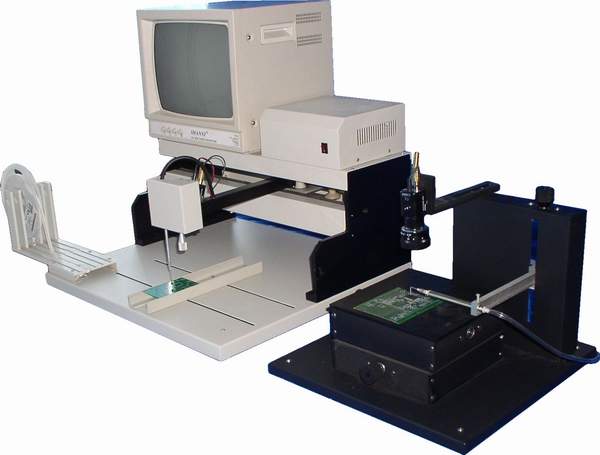

Manual Pick and Place Machine with Precision X-Y-A stage SMD-TP-VF-XYA
|
Sale Price: $2,325
|
Help you accurately place your surface components on PCB boards.
l
New model with dual mini video cameras. The two videos switch automatically
and look from opposite side of the chip to help align it accurately with
the PCB.
l
Suitable for
prototype and small quantity production.
l
Can be used for QFP,
PLCC, BGA, SMT resistors, capacitors, etc.
l
Can be used to work
on pitches as fine as 0.5mm.
l
Max. Working area
370mmx300m.
l
Max. X direction
movement 500mm.
l
Max. Y direction
movement 300mm.
l
Max. Z direction
movement 10m, 360 degree rotation.
l
Electrical vacuum
pick tool for easy and accurate operation.
l
Foot vacuum switch.
l
No computer or
software programming needed.
l

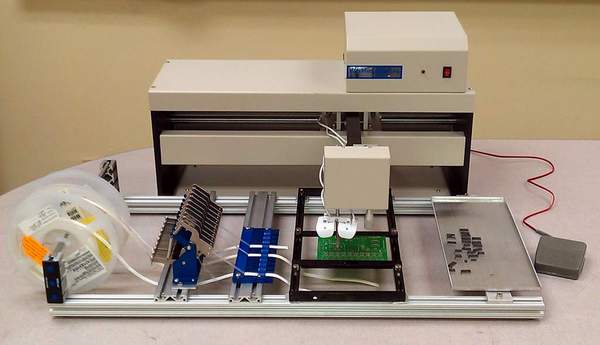

Optional additional reel frames. It comes with one reel frame. The platform
has room for six frames. Each frame can mount five reel feeders.
l
Color microscope CCD video camera.
l
Shipping weight: 100 lb.
l
One-year
manufacture's warranty.
Note: the manual pick and place machine is an entry level SMT device. Its
ability is limited.
Video monitor or TV not included.
Operation:
Pull the little handle underneath the header in X or Y direction movements.
The handle can also be turned around and pulled down.
First
move the header to the reel feeder, or parts on the platform board, pull down
the handle. The part will be sucked on the vacuum tool. Then move the header to
anywhere on the PCB board, aiming it from several directions while pulling the
handle downwards. As soon as the component touches the PCB board, it will be
released automatically. Gently release the handle to its original position.
Repeat this process for other parts. Chips or other loose parts can just
be arranged on the platform areas which are not occupied by the PCB board.
The manual pick and place machine is designed for prototype or low volume
PCB assembling. Its movement is total manually controlled by an operator. It can move in x,y,z and θ directions. Placement speed and accuracy are dependent on the operator's
skill.
The machine has a built in vacuum pump, the same vacuum pump as in the
electrical vacuum pen which is sold separately. The vacuum pump has two outlets, one is used by the pick and
place vacuum header, the other is connected to a vacuum pen which can be used to pick up parts
by hand. The two air outlets can be combined into one by using a T connector to
increase the vacuum strength. At most situations, that is not necessary.

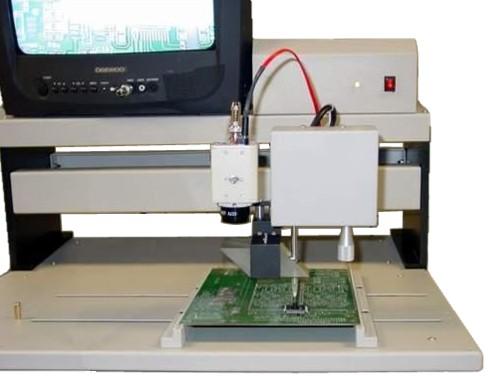

The color CCD video cameras have a 6X magnification to help viewing the components. The video cameras do not directly
help the placing process as it is mounted in an angle, hence the component is not viewed in a direct up-down direction.
Align the IC pins with the pads on the PCB through the switching videos
while the IC is placed slowly on the PCB.

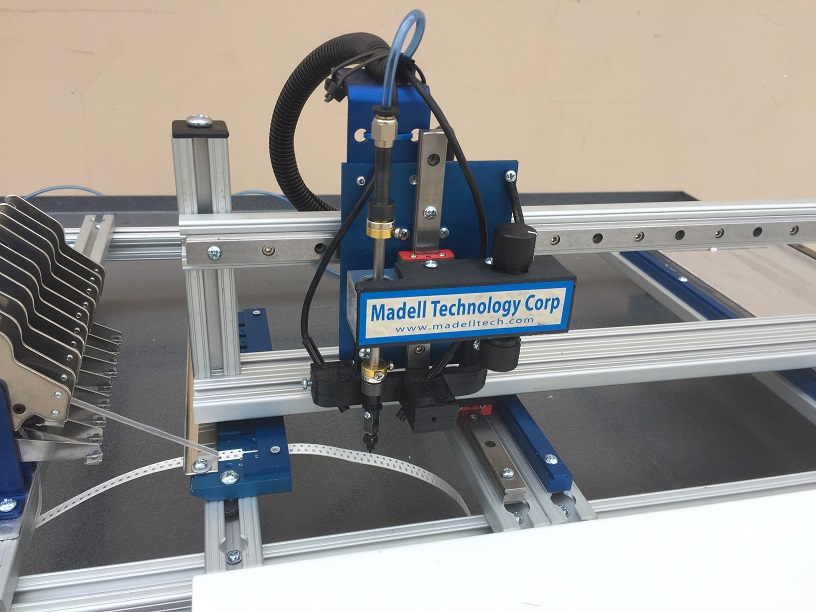

The vacuum needle pipe is connected to a movement sensor inside
the pick and place header. When the vacuum pipe moves upwards, it trigs the sensor and switches on or
off the vacuum pump. The part is picked up or released accordingly.
Some hints of operations:
After placing the part on the board, release the handle as slow as
possible. This will give the vacuum path some time to release the residue air pressure. If the handle
is released too fast, the component just placed maybe be sucked upward and cause misalignment.
Placing high pitched components. First aim the part roughly, move the part
downward as close as possible to the circuit board, but do not touch the board.
Turn off the power on the control box and let the component drop down by itself.
Q&A
Q: How much magnification can you get with the video camera? Is it possible
to clearly see fine pitch SMD, like a LQFP64?
A: Video camera magnification is about 10X. Total magnification is also
related to the monitor or TV size. Currently, you can see the pins, but
the video does not help you to align the chips directly with the pads on
the PCB. The video monitor is mounted in an angle. We will have an upgraded
version with an optical device to help align fine pitch SMD's.
Q: Is there other lens available to the camera?
A: It is a standard video camera which uses standard lens. There are plenty
of lenses available on the market with various magnification ranges.
Q: Does the SMT Reel Feeder include empty reels?
A: No.
Q: Do you have operation instructions?
A: No. This is a manual machine, everything is controlled by the operator's
fingers and foot. We do not know what else to add about the operations
besides already mentioned above.
|
