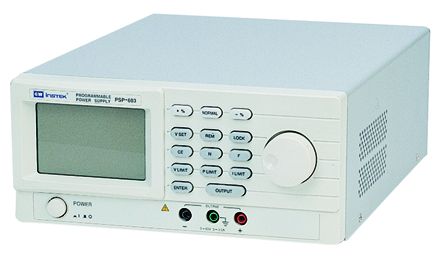

Instek PSP-Series - Programmable Switching D.C. Power Supply









FEATURES:

LCD Display
Output ON/OFF Control
3 Step Fan Speed Control
Setting of Voltage/ Current/ Power
Key Lock to Avoid Error Operation
Normal, +% & -% Output Operation Key
High Efficinecy and High Power Density
Standard Interface: RS-232C
Option: Jack Type Terminal for Europe


  Data Sheet    User & Programmer Manual


    SPECIFICATIONS



OUTPUT
Model PSP-603 PSP-405 PSP-2010
Voltage 0~60V 0~40V 0~20V
Current 0~3.5A 0~5A 0~10A

     VOLTAGE REGULATION Load < 10mV < 10mV < 10mV
Line < 0.05% < 0.05% < 0.05%

     CURRENT REGULATION Load < 5mA < 5mA < 5mA
Line < 0.05% < 0.05% < 0.05%

     RIPPLE Voltage (mVrms) < 20mV < 20mV < 20mV
Current (mArms) < 10mA < 10mA < 10mA

     RESOLUTION Voltage 20mV 10mV 10mV
Current 2mA 2mA 5mA

     PROGRAM ACCURACY Voltage < 40V ±0.05%rdg+3digits ±0.05%rdg+3digits ±0.05%rdg+3digits
  < 60V ±0.05%rdg+4digits ±0.05%rdg+4digits ±0.05%rdg+4digits
Current < 3.5A ±0.1%rdg+5digits ±0.1%rdg+5digits ±0.1%rdg+5digits
  < 5A ±0.1%rdg+5digits ±0.1%rdg+5digits ±0.1%rdg+5digits
  < 10A ±0.3%rdg+10digits ±0.3%rdg+10digits ±0.3%rdg+10digits

     READBACK(METER) RESOLUTION Voltage As Resolution As Resolution As Resolution
Current As Resolution As Resolution As Resolution

     READBACK(METER) ACCURACY Voltage As Program Resolution As Program Resolution As Program Resolution
Current As Program Resolution As Program Resolution As Program Resolution

     PROTECTION OVP/OCP/OPP
YES
YES
YES

     OUTPUT ON/OFF CONTROL
YES
YES
YES

     DISPLAY
LCD
LCD
LCD

     INTERFACE (STANDARD)
RS-232C
RS-232C
RS-232C

     POWER SOURCE AC 1150V/230V±15%, 50/60Hz

     ACCESSORIES Instruction manual x1,
Power cord x1,
Test lead GTL-104 x1

     DIMENSIONS & WEIGHT 225(W) x 100(H) x 305(D) mm ; Approx. 4kg
