Semi-Auto Pick and Place Machine with Split Vision and
BGA Mounting Station
Fine Pitch IC Assembling Made Easy
SM-300

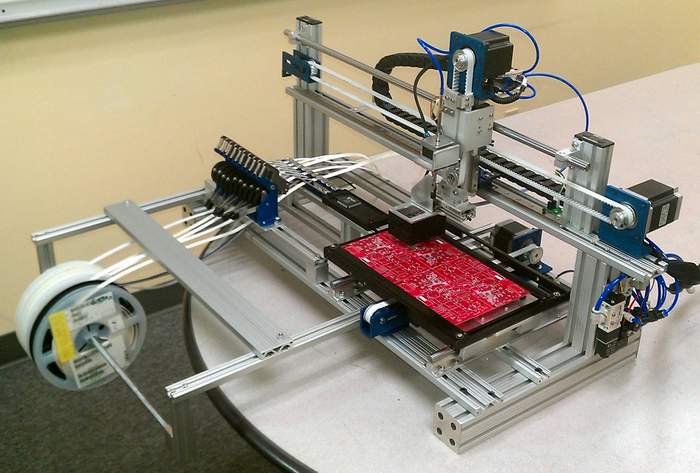

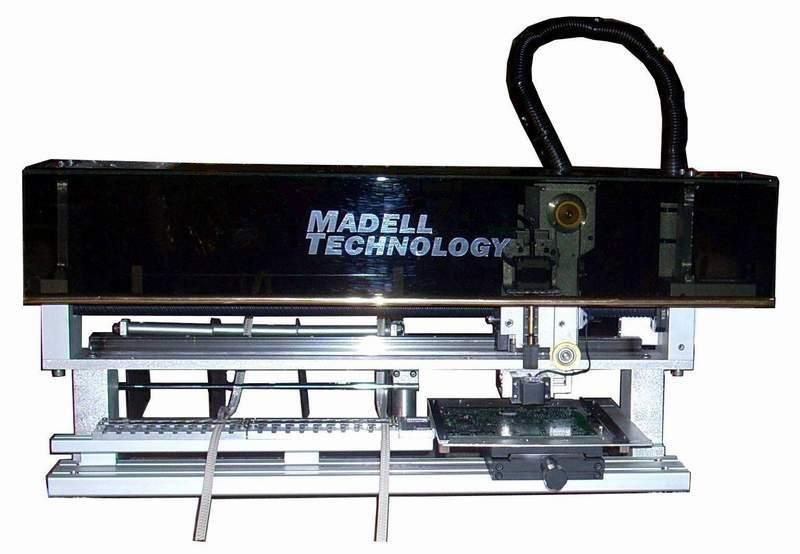

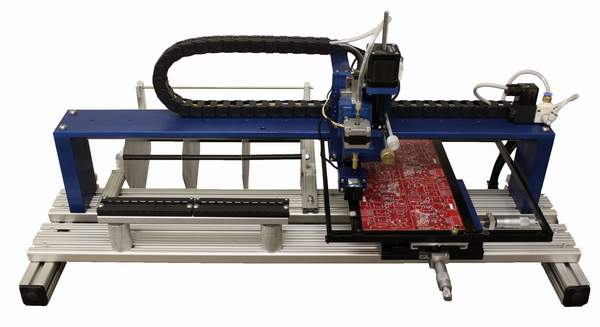

Standard SM-300

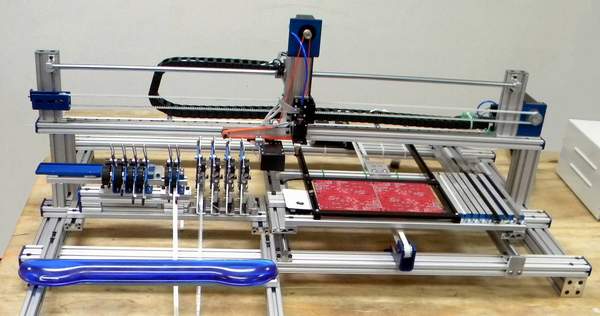

Extended SM-300 for PCB size 12"x16"

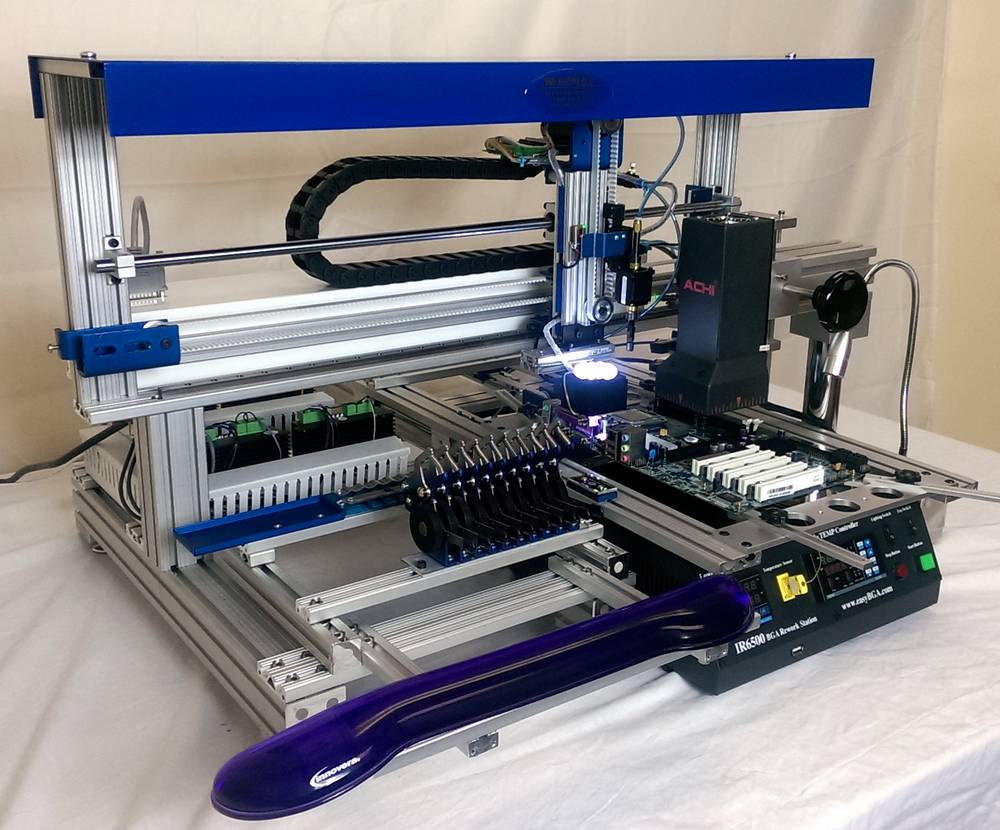

SM-300-BGA BGA Rework Station (tape feeders are optional)
Pick up a 0603 part

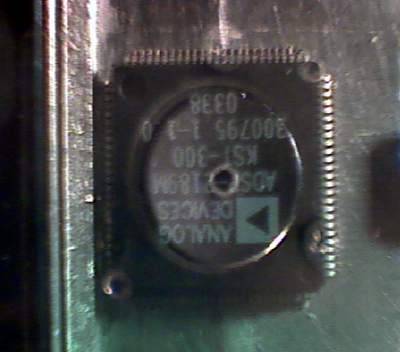

Pick up an IC

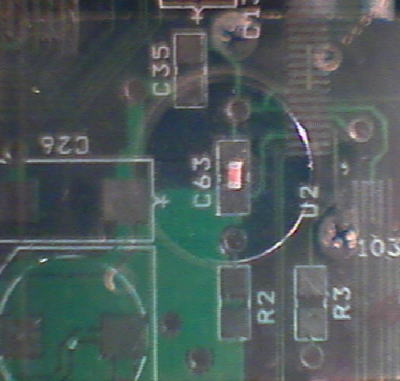

Place a 0603 part

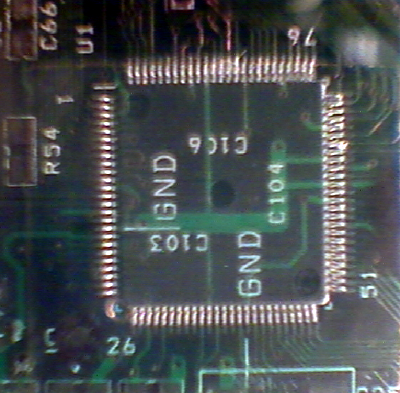

Place a QFP part

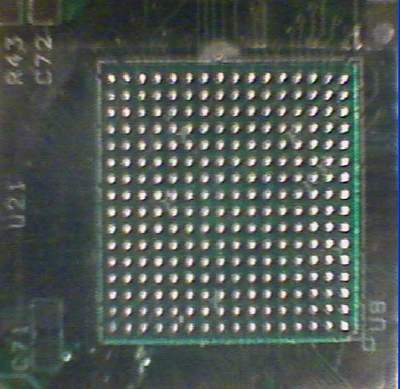

Place a BGA
PCB and parts(or nozzle) superimposed for alignment before placing with
the SM-300 split vision
SM-300
$6650 (with split vision and high resolution camera, ten 8mm tape feeders)
$5950 (with split vision and high resolution camera, no tape feeders)
The SM series machines are the result of innovation and extensive experience
in both manual and automatic pick and place machines. Designed for easy
of operation and fast placement. The SM machines differ from other semi-automatic
machines on the market in the sense that more jobs are left for the machine
to perform.
SM-300 Features:
Motorized X, Y, Z and rotation movements with stepper motors
Split vision for fine pitch components and BGA. With split vision, both
the circuit board and part on the vacuum nozzle can be seen on the same
screen. Accurate alignment is achieved by adjusting the X,Y,Z and rotation
while watching the split vision video either on the computer. Bigger split
prism is used on the SM-300 than the previous models for larger IC's
Direct pick and place, or programmable pick and place sequence
Semi auto or full auto mode for resistors/capacitors
Teaching video camera integrated with split vision prism, high resolution
camera 1280x960 pixels, no computer vision function
Works from 0201 to big BGA and other IC's
Pick and place speed over 1000 parts per hour for a trained operator
Simple and easy to use software
Use desktop or laptop computer (Win 10 or Win 11, Desktop or Laptop)
12 month full factory warranty
110V AC 60Hz, or 220 V AC, 50Hz
Vacuumn pump incuded
Made in USA
Machine customization available
Regular lead time 3~4 weeks
Operations:
The machine can be operated with one or two hands: left hand advances tapes,
right hand confirms pick and place by clicking on the mouse. No pick up
or place confirmation necessary if auto mode is selected. Direct pick and
place for small parts and the split vision is used for IC's
Program the feeders and parts in the software
Start the pick and place process in the software
Machine moves to the programmed feeder location , lowers the nozzle, waits
operator to confirm before picking up the part
Operator pushes on the SX-2 feeder handle to advance the tape, confirms
the pick up by click on the mouse
Machine picks up the part, rotates if necessary, moves to the programmed
location on the PCB and lowers the nozzle, waits for the operator to adjust
the part and confirm before placing the part
While watching the split vision, the operator adjusts the part position
to align with the PCB
Operator confirms to place the part
Repeat the above steps until the programmed pick and place process is finished
The machine can run in full automatic mode if SX-3 or PX feeders are installed
