SX1000 Machines
Full Automatic
From Prototype to Production
Your low cost solution

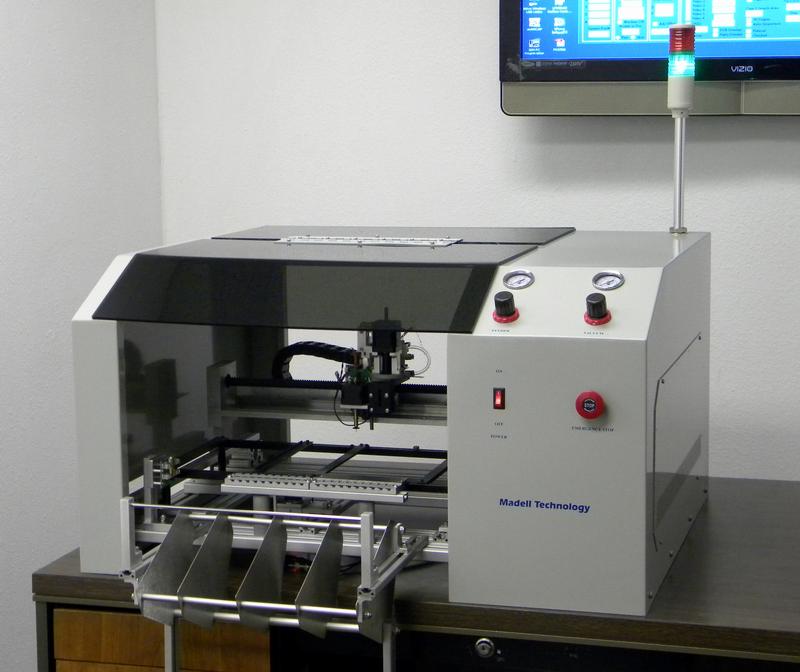

SX1010

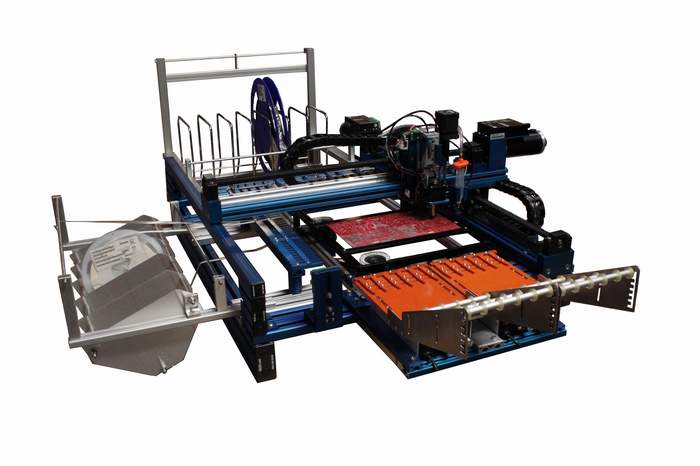

New model: SX2010

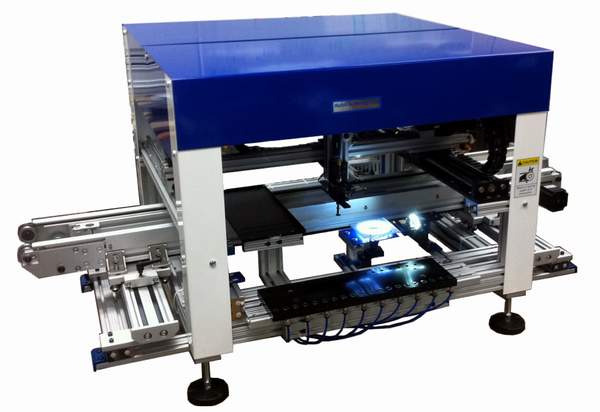

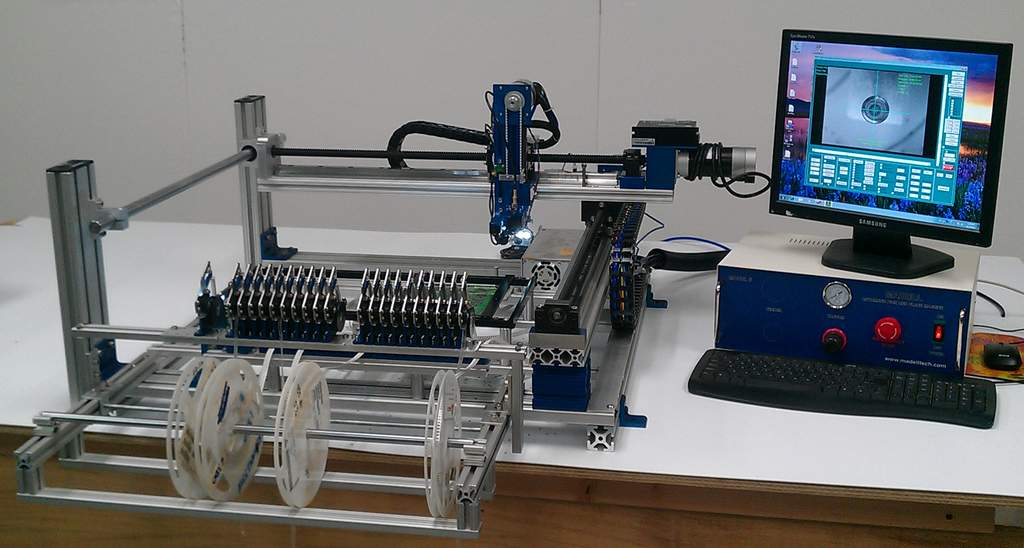

SX1010 with optional PCB Conveyor for easy loading and unloading and inline production

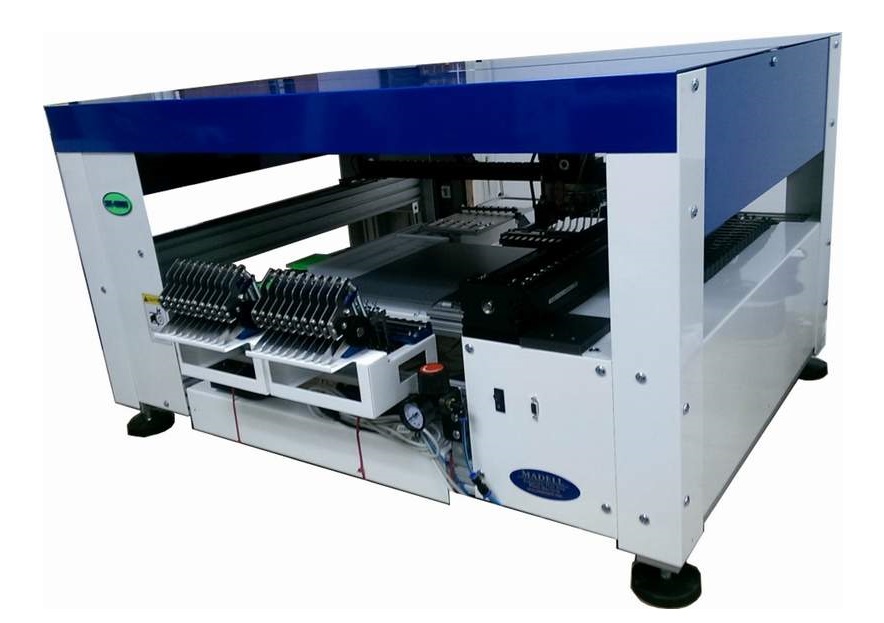

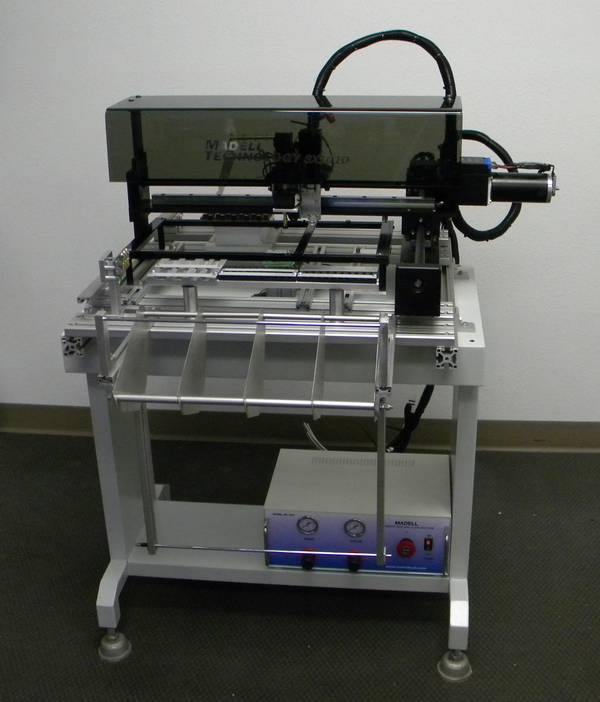

SX1010 with optional stand
SX1000 Series Office Automatic Pick and Place Machines with Computer Vision
Centering

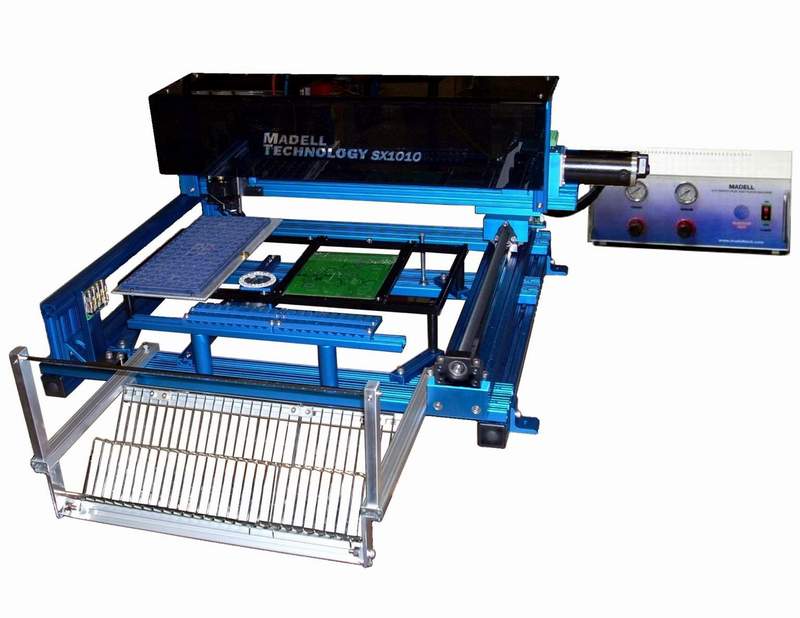

SX1010: $11,750

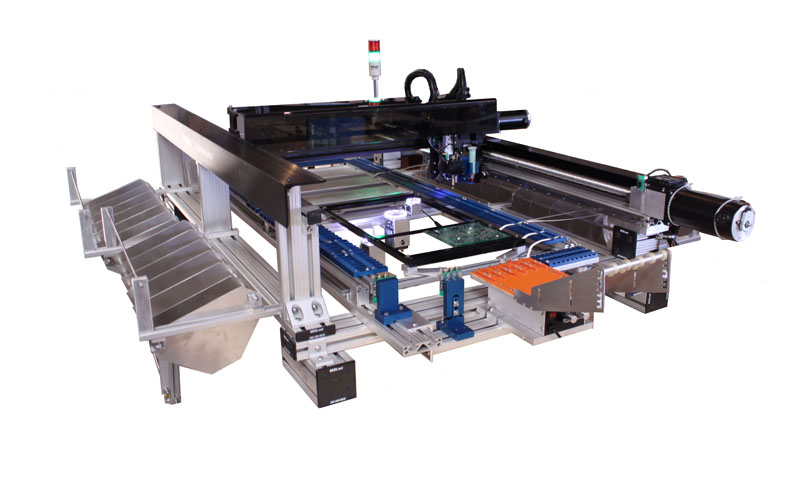

SX1020: $14,250
SX2010: $13,250
The SX series mini automatic pick and place machines are specially designed
for low budget circuit boards assembling. It is a great tool for prototypes,
education and research, as well as small batch of production.
Quick tape mounting with our innovated tape forwarding system (patent pending)
Full computer vision for small parts and fine pitch IC's
Fast and easy to use
Very low cost feeders
Features:
Place speed 1000, when computer vision is enabled
Placement of 0201 and bigger parts
Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts, software fly vision centering, included
Servo motors and encoders for more precise movement and quieter operation
X and Y axis 0.0005" resolution, 0.001" positioning, 0.045° rotational resolution

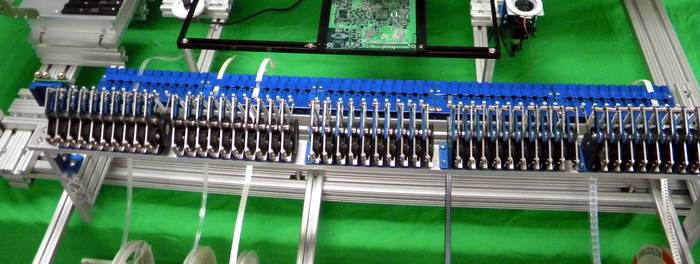

Max. feeder capacity: 70 SX 8mm feeders for SX1010 (feeders mounted at front, rear and middle); 140 SX 8mm feeders for SX1020; Vibration feeders and trays take tape feeder space
Free feeders: twenty SX 8mm paper or plastic tape feeders included for
SX1010 and SX2010, fourty included for SX1020
Low cost additional feeders, also support DIY feeders; Additional ten channel
SX 8mm paper feeder module: $500 (with mounting fixture and tape basket);
$175 (feeder only)
Automatic PCB board position correction with fiducial recognition included
CAD file convert function
Low machine profile for more stable and faster operation
12 month full factory warranty - parts & labor
Easy to use graphic software for quick programming. Programming can be
done with teaching video camera, on screen Gerber file graphics or CAD
file
110V AC 60Hz, or 220 V AC, 50Hz, 250 watts electrical
60 psi shop air required
50 pounds (23Kg) for SX1005
MADE IN USA
Machine customization available
Options:
Windows XP computer
Additional up looking cameras (only fixed lens can be used on the video
camera for computer vision. Different cameras should be used for small
and big parts for best results. Also working speed can be improved if more
cameras are placed at different locations close to feeders)

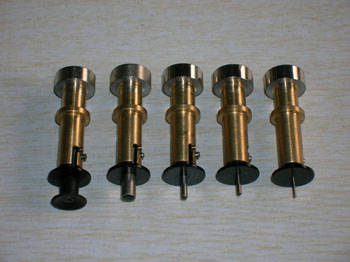

Automatic nozzle changer
Fly vision for faster placement
First and second paste/glue dispensers
Five channel vibratory feeder for tube parts
PX4700 feeders can be installed in addition to SX feeders

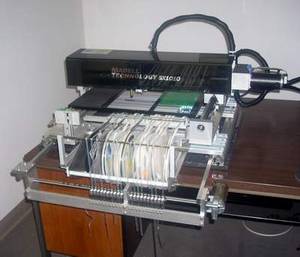

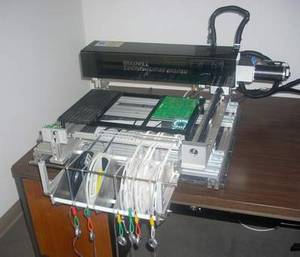

Motorized tape peeling (peeling weights will be provided if this option
is not ordered)
Marble machine base (add about 65 pounds shipping weight for SX1010)

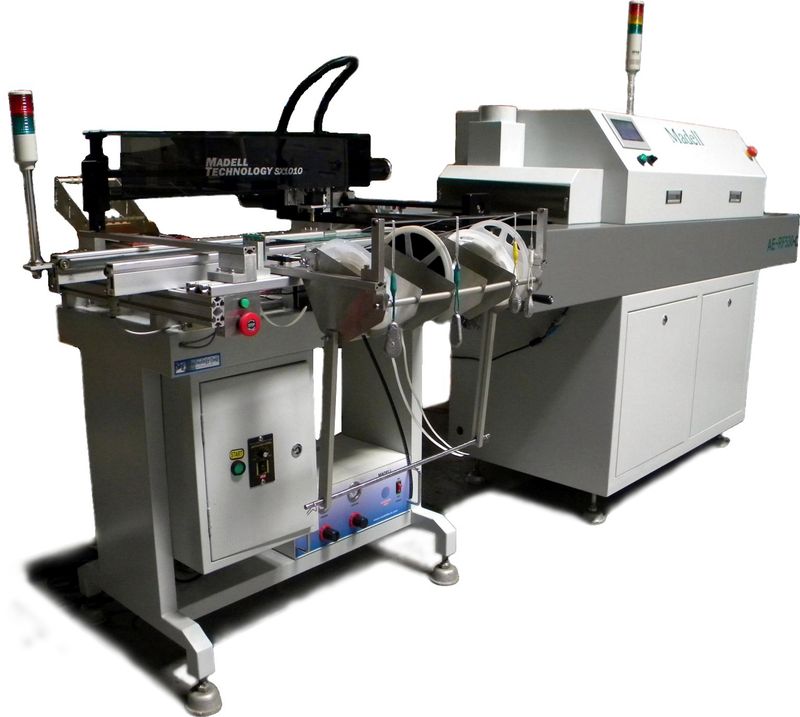

PCB conveyor for easy loading and unloading of PCB and inline operation
Advantages of SX Feeders:
Low cost
Fast loading and unloading
More accurate than mechanical feeders
More reliable
No feeder calibration necessary
Fit any tape pitches
This video shows how our patented SX feeding system works: first the tape is pressed and pulled forward; then the camera searches for the part and picks it up.
