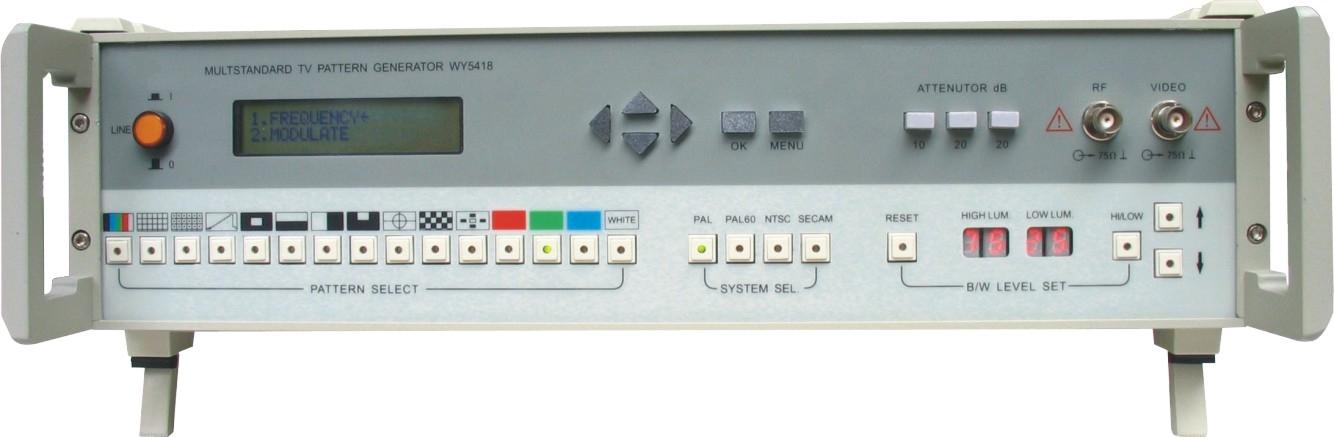

WY5418 Multiformat TV Signal Generator
- Support PAL/NTSC/SECAM color TV formats
- Digital synthesized frequency modulator
- 45MHz~870MHz, in 0.25MHz steps, 75Ω, >100dBµV
- 16 bulit in video patterns; CVBS, S-Video and Y-Cb-Cr video outputs 1Vp-p,
75Ω
- Audio frequency diviation 6.5MHz, 6MHz, 5.5MHz, 4.5MHz
- Optional RS232 interface
|
 |
WY8600 Multiformat Video Signal Generator
- Support PAL, PAL-M, NTSC-M, SECAM formats
- Video output: CVBS, YCbCr, S-Video, Y/C
- Audio output: L,R: 400Hz and 1KHz, sine waveform, 1KΩ
- 4 Built in test parterns
|
|
|
|
