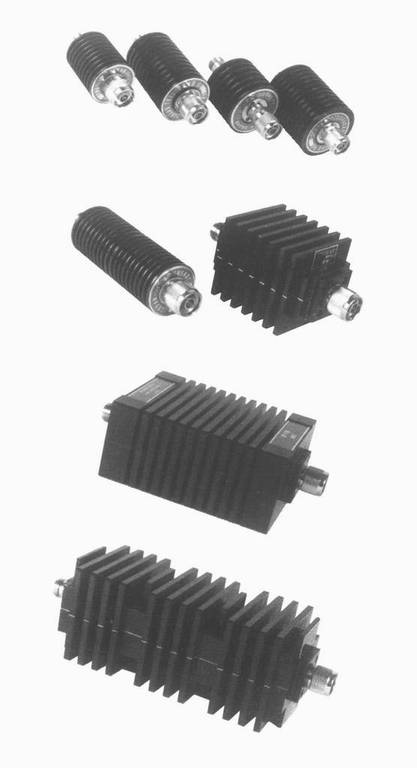

Coaxial RF Attenuators
|
| Model |
Average Power(W) |
Peak Power(KW) |
Frequency(GHz) |
SWR |
Attenuation(dB) |
Connection |
Weight |
Price |
| SMA |
1 |
0.25 |
DC-18 |
1.15-1.35 |
1-10,20,30 |
SMA |
50g |
$46.00 |
| TS2 |
2 |
0.5 |
DC-12.4 |
1.10-1.35 |
1-10,20,30,40 |
N,BNC,SMA,TNC |
200g |
$53.00 |
| TS5 |
5 |
0.5 |
DC-4 |
1.10-1.25 |
1-10,20,30 |
N,BNC,SMA,TNC |
200g |
$90.00 |
| DTS10 |
10 |
1 |
DC-12.4 |
1.10-1.35 |
1-10,20,30 |
N,SMA,TNC |
300g |
$138.00 |
| DTS25 |
25 |
1 |
DC-18 |
1.10-1.35 |
1-10,20,30 |
N,7/16 |
300g to 500g |
$224.00 |
| DTS50 |
50 |
10 |
DC-12.4 |
1.10-1.35 |
10,20,30 |
N,7/16 |
400g |
$235.00 |
| DTS80 |
80 |
10 |
DC-4 |
1.10-1.35 |
10,20,30 |
N,7/16 |
1.2Kg |
$262.00 |
| DTS100 |
100 |
10 |
DC-12.4 |
1.10-1.35 |
10,20,30,40 |
N,7/16 |
1.5Kg |
$284.00 |
| DTS150 |
150 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40 |
N,7/16 |
1.5Kg to 2.5Kg |
$380.00 |
| DTS200 |
200 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40 |
N,7/16 |
2.5Kg |
$543.00 |
| DTS250 |
250 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40 |
N,7/16 |
2.5Kg |
$606.00 |
| DTS300 |
300 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40,50 |
N,7/16 |
4.5Kg, 7Kg |
$648.00 |
| DTS400 |
400 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40,50 |
N,7/16 |
4.5Kg, 7Kg |
|
| DTS500 |
500 |
10 |
DC-4 |
1.10-1.40 |
10,20,30,40,50 |
N,7/16 |
10Kg |
|
| DTS800 |
800 |
20 |
DC-4 |
1.20-1.50 |
40,50,60 |
N,7/16 |
15Kg |
|
| DTS1000 |
1000 |
50 |
DC-4 |
1.25-1.50 |
30,40,50,60 |
N,L27 |
15Kg |
|
Impedance 50Ω for all models
Peak value is measured with 5µS pulses |
|
|
Price: $438.00 |
AT-2000 RF Amplifier |
| FREQ(GHz) |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
1.1 |
1.2 |
1.3 |
1.4 |
1.5 |
1.6 |
1.7 |
1.8 |
1.9 |
2.0 |
| GAIN(dB) |
26 |
26 |
27 |
27 |
28 |
28 |
28 |
27 |
27 |
27 |
26 |
25 |
25 |
25 |
24 |
23 |
|

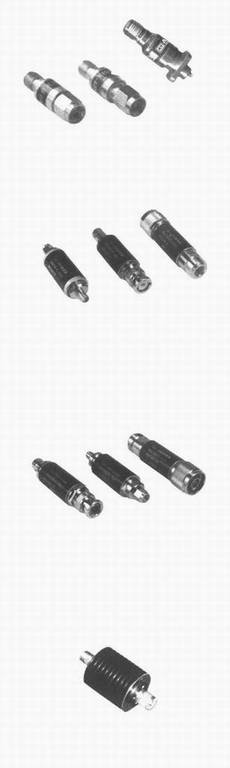

Coaxial Load
| Model |
Average Power(W) |
Peak Power(KW) |
Frequency(GHz) |
SWR |
Connection |
Weight |
| SMAF |
1 |
0.25 |
DC-12.4 |
1.1-1.3 |
SMA |
50g |
| TF2 |
2 |
0.5 |
DC-12.4 |
1.1-1.3 |
N,BNC,SMA,TNC |
150g |
| TF5 |
5 |
0.5 |
DC-4 |
<1.2 |
N,BNC,SMA,TNC |
150g |
| TF10 |
10 |
1 |
DC-12.4 |
1.1-1.3 |
N,BNC,SMA,TNC |
200g |
| TF25 |
25 |
1 |
DC-12.4 |
1.1-1.3 |
N,7/16,SMA,TNC |
250g to 350g |
| TF50 |
50 |
10 |
DC-12.4 |
1.1-1.3 |
N,7/16,SMA,TNC |
500g to 1000g |
| TF80 |
80 |
10 |
DC-12.4 |
1.1-1.35 |
N,7/16,TNC |
150g to 270g |
| TF100 |
100 |
10 |
DC-4 |
1.1-1.25 |
N,7/16 |
1.5Kg |
| TF150 |
150 |
10 |
DC-4 |
1.1-1.3 |
N,7/16 |
1.5Kg to 2.5Kg |
| TF200 |
200 |
10 |
DC-4 |
1.1-1.3 |
N,7/16 |
2.5Kg |
| TF250 |
250 |
10 |
DC-4 |
1.1-1.3 |
N,7/16 |
2.5Kg |
| TF300 |
300 |
10 |
DC-4 |
1.15-1.4 |
N,7/16 |
4.5Kg, 7Kg |
| TF400 |
400 |
10 |
DC-4 |
1.15-1.4 |
N,7/16 |
4.5Kg, 7Kg |
| TF500 |
500 |
10 |
DC-4 |
1.15-1.4 |
N,7/16 |
10Kg |
| TF800 |
800 |
20 |
DC-4 |
1.2-1.45 |
N,7/16 |
15Kg |
| TF1000 |
1000 |
50 |
DC-4 |
1.2-1.45 |
N,L27 |
15Kg |
| TF2000 |
2000 |
100 |
DC-1 |
<1.25 |
N,L27 |
20Kg |
Impedance 50Ω for all models
Peak value is measured with 5µS pulses |
|
|
|
|
|
|
