Madell DP2006-1 Automatic Solder Paste Dispenser
Introduction Price: $5495
with Pick and Place Head: $8995
Pick and Place without Dispenser: $7995
| DP2006-1 Features |
| Automatic, interactive and single dispensing (placing) mode |
| Windows XP based control software, friendly user interface |
| GERBER file based |
| Dispensing list generated easily by clicking on the computer screen |
| Single axle precision 0.0005" |
| Working area 14"x13.2". Other sizes can be customer ordered. |
| QK982B dispensing controller included |
| Computer, computer monitor and video monitor not included. |
Options:
Pick and place head: $3500
Computer vision with an up looking camera
Additional up looking cameras |
| work samples |

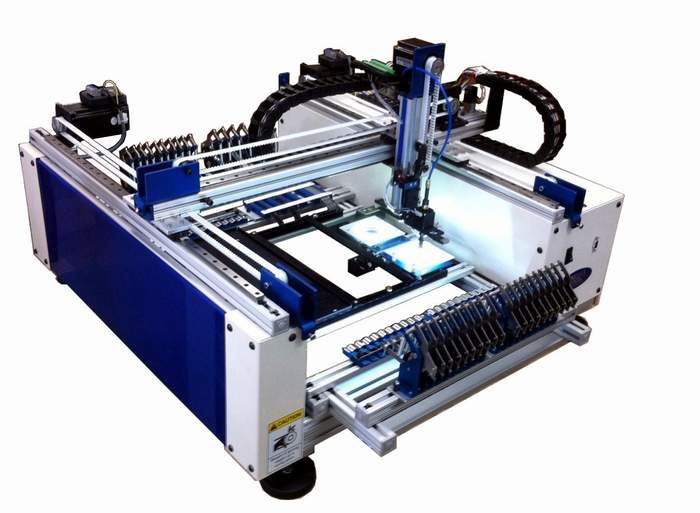

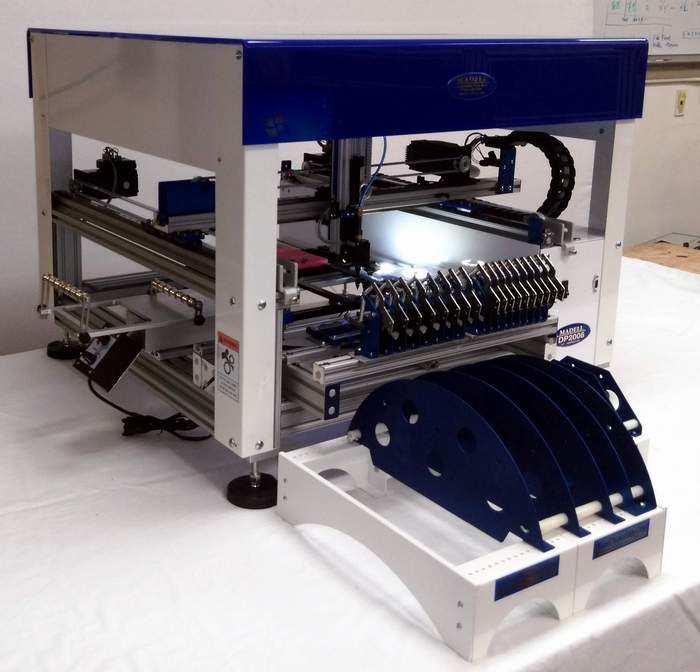

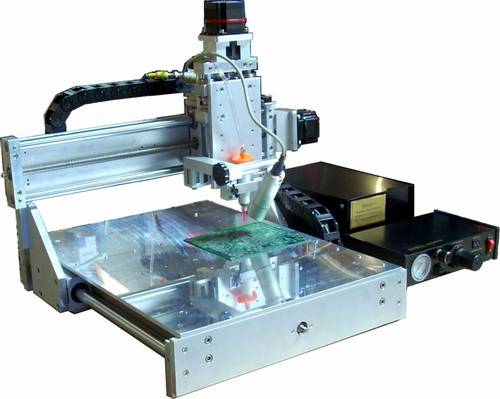

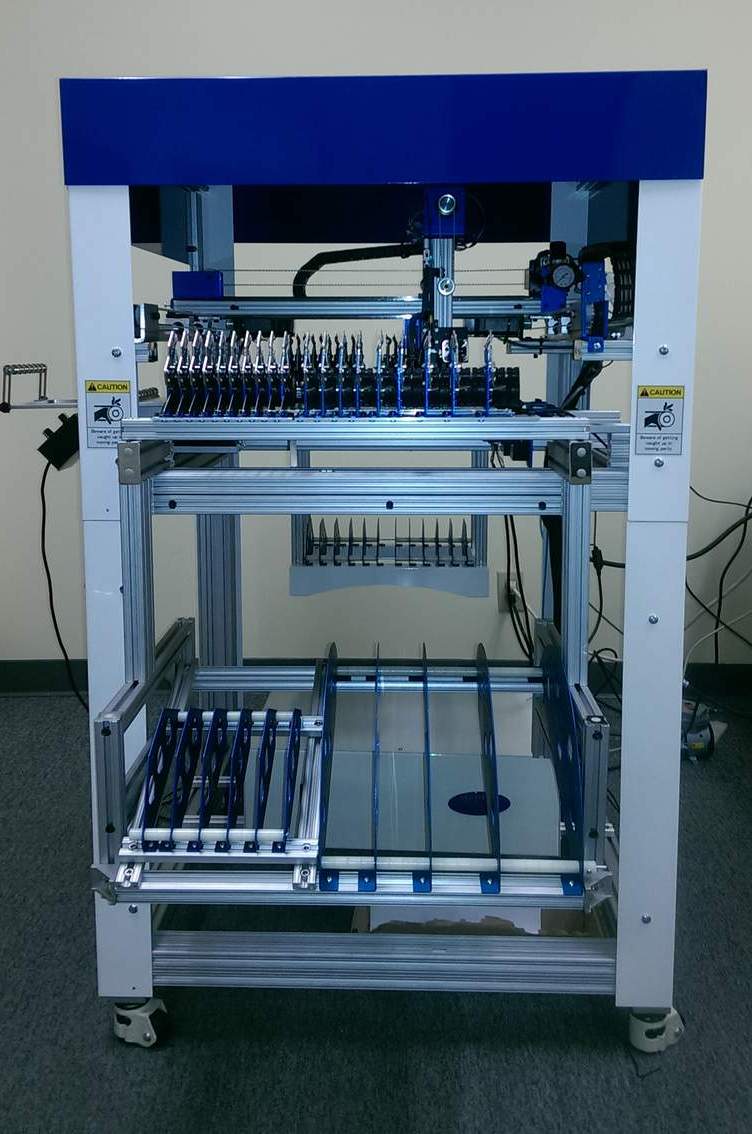

The DP2006-1 has a precise, heavy duty, general purpose XYZ movement base,
driven by stepper motors. Different tools can be mounted on it conveniently.
Options include: dispenser, pick and place, PCB routing, hot air gun, etc.

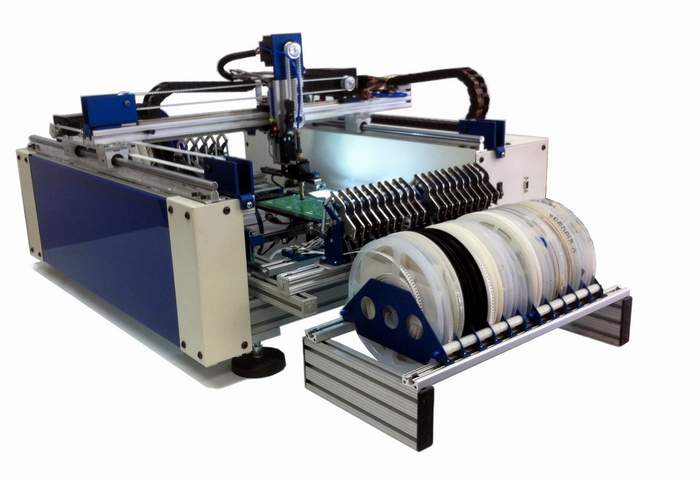

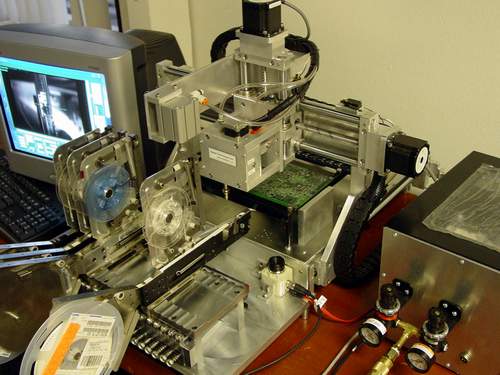

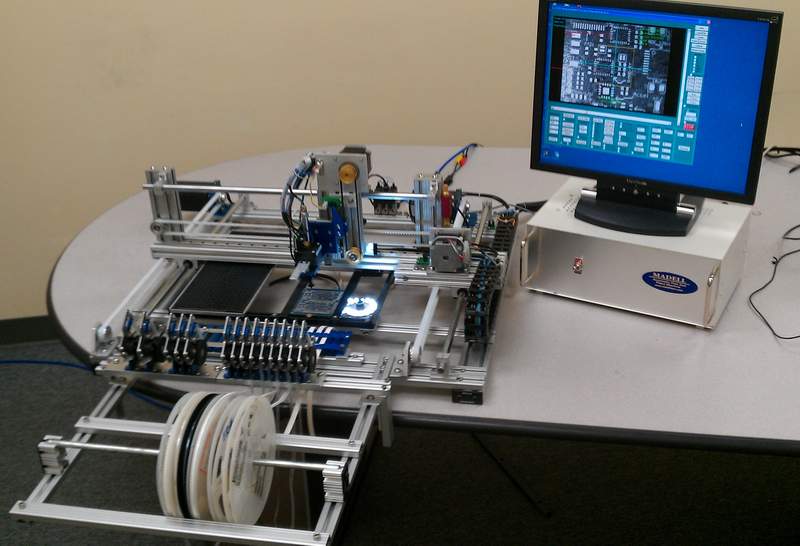

It is possible to purchase the DP2006-1 with the pick and place option
only. The pick and place head is similar as the head on our PX3700 series pick and place machines.
Pick and Place Operations:
With manual feeders: the machine sequentially picks up taped parts from
the manual feeder. The tape needs to be manually pulled forward for every
20 to 30 parts. IC's need to be placed on flat manual feeders, pushed into
a corner for positioning before they are picked up.
Programming:
Yes, it is programmable, on the computer. Just like the automatic paste
dispenser, with GERBER based interface. Click on the computer screen to
set the initial placing position. Fine adjustments are done at testing
runs.
Accuracy:
Accuracy is related to lead screws used on the machine, and hence the speed
of the machine.
Choices are from 0.1", to 1" lead screws. Accuracy from 0.00005"
to 0.0005" per axis. The finer of the lead screw, the more accurate
and also the slower of the movement. The machine accuracy will be over
the manual feeder accuracy. So inaccuracy will occur on the manual feeders.
Automatic feeders, taped or stick, can also be purchased and mounted on
the DP2006-1.
Options:
Options also include video assisted high pitch IC centering, and computer vision centering.
Video assisted: manually align the chip with the pads on the circuit board
with computer video assistance.
Computer vision: automatically align the chip with the pads on the circuit
board.
 |
 |

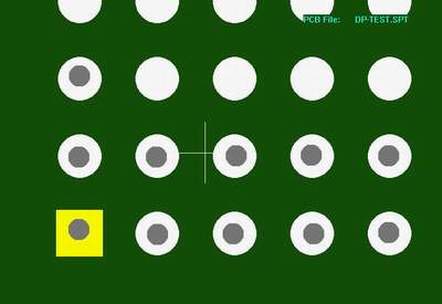

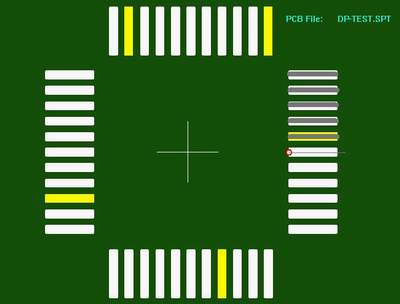

| Generating dispensing or placing list by clicking on pins of the component
displayed on computer |

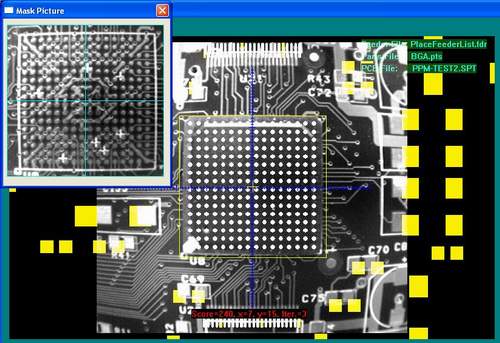

BGA pick&place with computer vision assistance, PCB file overlaid to
help checking the accuracy |
| The YD series automatic syrup dispensers are economical models for solder
paste applications on PCB circuit boards without the need of stencil printing.
They can also be used for other syrup dispensing applications. |
| Model |
YD2000
$6495.00 |
YD3000
$9495 |
YD4000
$13695 |
| Working area |
[XxYxZ]
200x200x50mm |
[XxYxZ]
300x300x100mm |
[XxYxZ]
400x400x100mm |
| X, Y axle travel speed |
300mm/sec |
500mm/sec |
750mm/sec |
| Z axle travel speed |
120mm/sec |
| Dispensing speed setting range |
X,Y: 1-300 mm/sec |
X.Y.1-500 mm/sec |
X.Y.1-750 mm/sec |
| Repeat precision |
0.02mm |
| Single axle precision |
0.01mm |
| Teaching mode |
APTP/CP teaching |
| Driving mode |
step motors |
| No. of axles |
3 axles |
| Computer interface |
RS 232 |
| Control I/O |
8 INPUT, 8 OUTPUT |
| Memory |
99000 dispensing points |
| Dimension |
460x520x670mm |
560x640x670mm |
620x760x670mm |
| Weight |
20KG |
40KG |
55KG |
| Power |
AC 110/220V 50/60Hz switchable |
| Working environment |
Temperature: 0°C~40°C, humidity: 20~90% |
|
| Other Models |

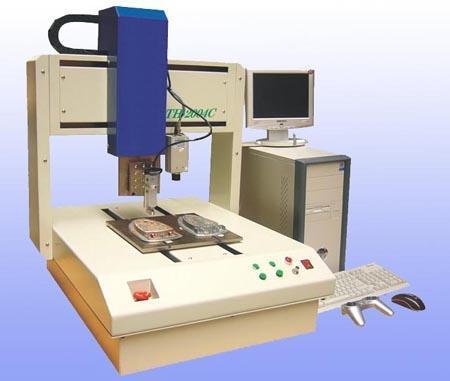

TH-2004C, integrated dispensing controller, precision 0.005mm, including
vision and computer interface |

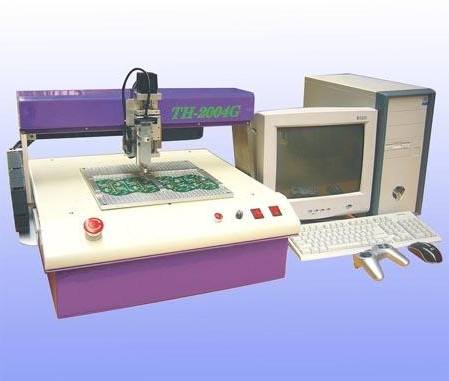

TH-2004G, integrated dispensing controller, precision 0.02mm, including
computer interface |
|
