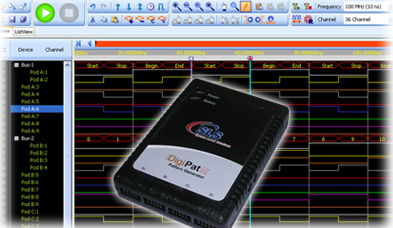

Pattern Generator/Logic Analyzer DigiPat SALE PRICE: $549.00 Features Generates digital signals in bit, byte and word formats with high speed USB Interface Channel Selection Modes: 9, 18 and 36 Programmable Sample Depth : 1 Sample - 512K Samples Programmable Sample Rate: 500 Hz - 100 MHz Advanced Waveform Editing Options like High, Low, Pulse, Clock, Arbitrary value, Counter etc Cursor Support for Time span Measurement All types Of Zooming Supported Various Bus Related Operations Supported Programmable Modes of Pattern Generation: Continuous, Programmable no. of times Supports advanced trigger options like Auto manual, External Trigger and Pattern Trigger with trigger counter for starting and stopping pattern generation Support for viewing pattern in numeric form with timestamp (List View) Support for saving and opening previously saved pattern files for reusability Replicates the output patterns on maximum 18 channels Support for importing CDLogic, VCD, ASCII files Command prompt and full screen mode support International language support. (Chinese, French)     Applications   Analysis, Verification and Debugging of digital circuits like : Logic Gates, FlipFlops, Digital Counters Micro controllers, Micro processors Systems On Chip (SOC) functions in FPGA, standard cell or ASIC CDLogic SALE PRICE: $549.00 Features Sampling rate: 500 Hz ~ 100 MHz Supports 36 Channels Samples: 64K ~ 512K per channel Protocol analysis facility for I²C and USB Flexible trigger options (Channel and Bus) Minimum sampling time (10ns) Output displays 25% pre trigger 75% post trigger data External high speed clock input (max. 100 MHz) LED indicators Includes high quality micro grippers Four pairs of military grade Teflon wire cable assembly Connects to computer's USB port Small physical size Runs on Windows 2000 and XP Displays samples (data) in List and Waveform View Displays bus data in Digital as well as Analog form Easy to setup Low power consumption Facility to print waveforms International language support Command prompt facility and full screen mode support Import/Export VCD (Value Change Dump) file and ASCII file     Applications   Using CDLogic, one can debug and verify the following: Microcontroller, Microprocessors Digital Counters State Machines Buffers or memory circuits using SRAM, DRAM and FIFO etc Buses System on Chip (SoC), functions in FPGA, standard cell or ASIC
