CA1640-20


CA1640P-20

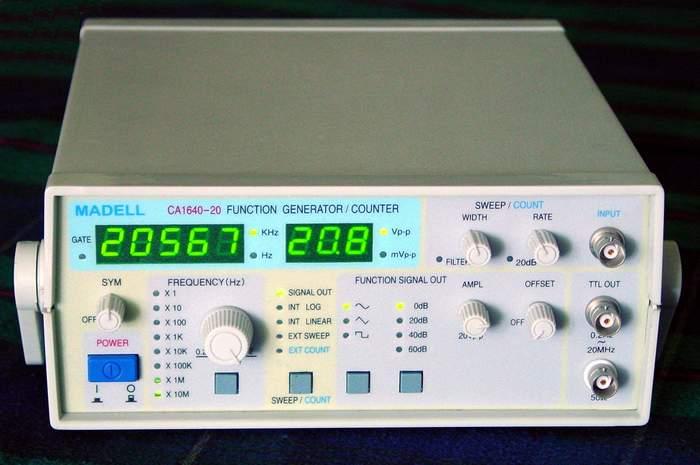

20MHz Sweeping Analog Function Generator/Frequency Counter
CA1640-20

List Price: $425.00
Sale Price: $260.00



20MHz Sweeping Analog Function Generator/Frequency Counter with 50V, 1A Power Output

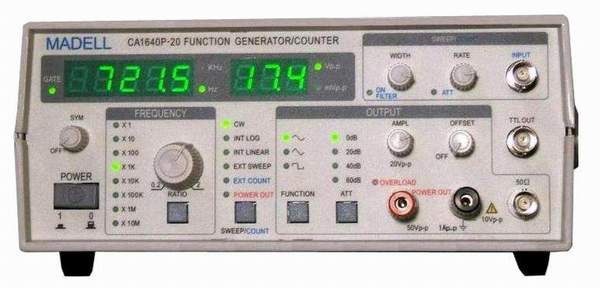

CA1640P-20 (Obsolete)



Specifications:

Frequency range: 0.2Hz-20MHz

l          Output signals: symmetrical or non-symmetrical sine, square and triangle waveforms.

l          Outputs: 50 Ωhm, TTL and power level.

l          Output signal levels 1mV-10Vp-p for CA1640-20, 50Vp-p and 1A p-p for CA1640P-20. Power output on CA1640P-20 is valid to 100KHz, not the full 20Mhz range.

l          DC bias: -5V-+5V.

l          LED readouts of frequency and voltage level.

l          Built-in frequency counter: 0.2Hz-20Mhz.

l         Internal or external frequency sweeping.

More models available.



Specifications

Frequency range

0.2Hz~20Mhz

Waveforms

sine,square,triangle,pulse

Output impedance

50 Ω

Output voltage

1mVp-p~10Vp-p  at 50 Ω

1mVp-p~20Vp-p  at 1M Ω

50Vp-p, 1Ap-p, CA1640P-20

Output modes

single frequency, sweeping

Symmetric

20%~80%

DC offset

-5V~+5V

TTL output

"1" >+3V, "0" <0.8V

TTL output impedance

600 Ω

TTL waveform

pulse

Frequency counter

0.2Hz~20Mhz

Power

110V, 60Hz, 30W

Size

265x215x90(mm)

Working temperature

0~40C

Average stability

0.5%, max fluctuation may reach 1.5% at some frequencies

Function output levels

0dB,  1Vp-p~10Vp-p, 10% accuracy

20dB, 0.1Vp-p~1Vp-p, 10% accuracy

40dB, 10mVp-p~100mVp-p, 10% accuracy

60dB,  1mVp-p~10mVp-p, 10%

Waveform distortions

sine:  <2%

triangle linearity: >90%

Square: <5% at 10kHz, 5Vp-p, rising time<17nS

Front Panel Controls

GATE

Every flash indicates the completion of a measurement

SYM

output signal symmetry adjustment

FREQUENCY

frequency range

SWEEP/COUNTER

selection of function output, sweeping or counter mode

FUNCTION SIGNAL OUTPUT

output level selection

WIDTH

sweeping range adjustment

RATE

sweeping time adjustment

WAVE

selection of output waveforms

AMPL

output amplitude adjustment

OFFSET

output signal offset adjustment

FILTER

input low pass filter, used in frequency counter mode

20dB

input attenuation, used in frequency mode




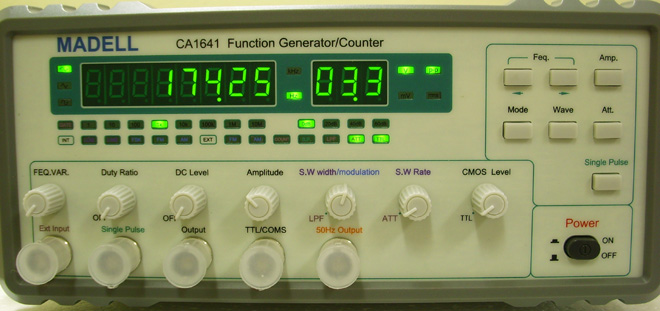

(CA1641-20) Function Generator
Sale Price: $232.00

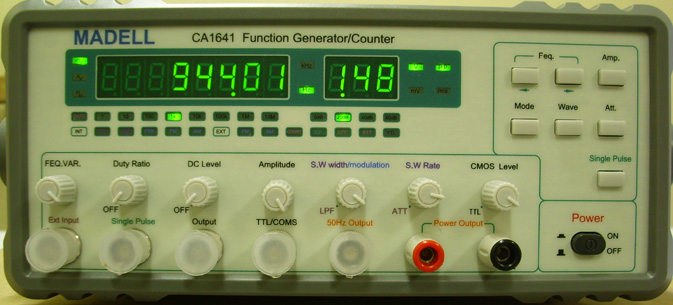

(CA1641P-20) Function Generator
Sale Price: $328.00



Main Features:

-Sine, square, triangle waves and pulse.
-Internal linear and logarithm sweeping, FM, AM, FSK modulations; External FM, AM.
-Digital frequency display and frequency counter



Specifications

Frequency range

0.2Hz~20Mhz

Waveforms

sine,square,triangle, pulsewaves

Output impedance

50 Ωhms

Output voltage

1mVp-p~10Vp-p  at 50 Ω

1mVp-p~20Vp-p  at 1M Ω

50Vp-p, 1Ap-p, CA1640P-20

Output modes

single frequency, sweeping

Symmetric

20%~80%

DC offset

-5V~+5V

TTL output

"1" >+3V, "0" <0.8V

TTL output impedance

600 Ω

TTL waveform

pulse

Frequency counter

0.2Hz~20Mhz

Power

110V, 60Hz, 30W

Size

265x215x90(mm)

Working temperature

0~40C

Average stability

0.5%, max fluctuation may reach 1.5% at some frequencies

Function output levels

0dB,  1Vp-p~10Vp-p, 10% accuracy

20dB, 0.1Vp-p~1Vp-p, 10% accuracy

40dB, 10mVp-p~100mVp-p, 10% accuracy

60dB,  1mVp-p~10mVp-p, 10%

Waveform distortions

sine:  <1%

triangle linearity: >90%

Square: <5% at 10kHz, 5Vp-p, rising time<17nS

Front Panel Controls

GATE

Every flash indicates the completion of a measurement

SYM

output signal symmetry adjustment

FREQUENCY

frequency range

SWEEP/COUNTER

selection of function output, sweeping or counter mode

FUNCTION SIGNAL OUTPUT

output level selection

WIDTH

sweeping range adjustment

RATE

sweeping time adjustment

WAVE

selection of output waveforms

AMPL

output amplitude adjustment

OFFSET

output signal offset adjustment

FILTER

input low pass filter, used in frequency counter mode

20dB

input attenuation, used in frequency mode


CA1641P-20/CA1641-20 Manual
