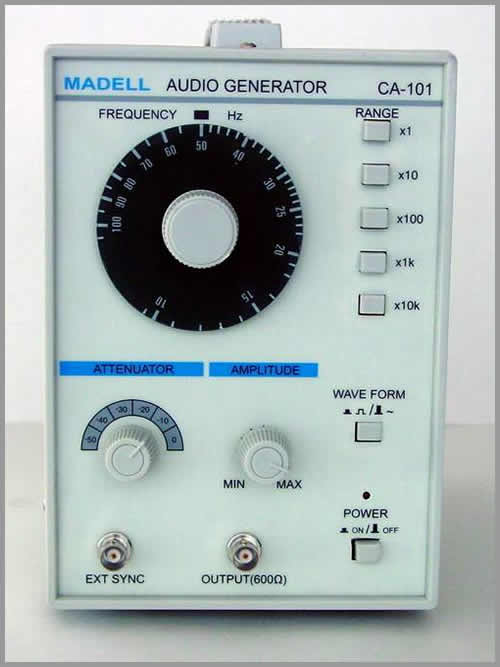

CA101 1Mhz Audio Function Generator
Output frequency: 10Hz-1Mhz
sine waveform > 5Vrms
square waveform > 10Vp-p
external sync 3% freq
Weight: 8.0 lbs.
Sale Price: $95.00

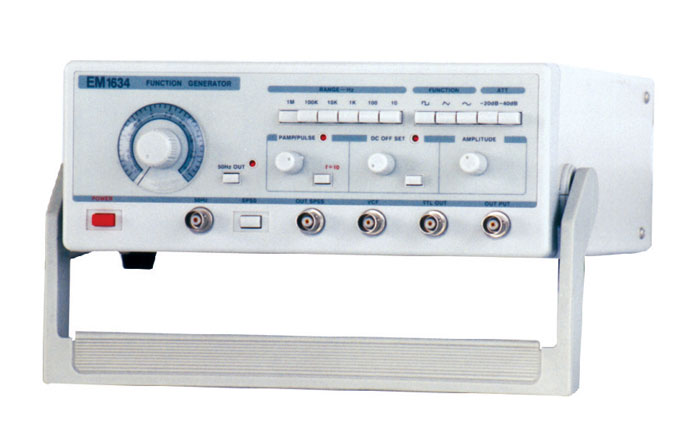

EM1634
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, TTL level, single pulse,  50Hz fixed sine
Output impedance: 50Ω
Amplitude: 5mV-25Vp-p
Square rise-time: ≤50nS
VCF: 0V-10V 1:100 with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg
Sale Price: $76.00

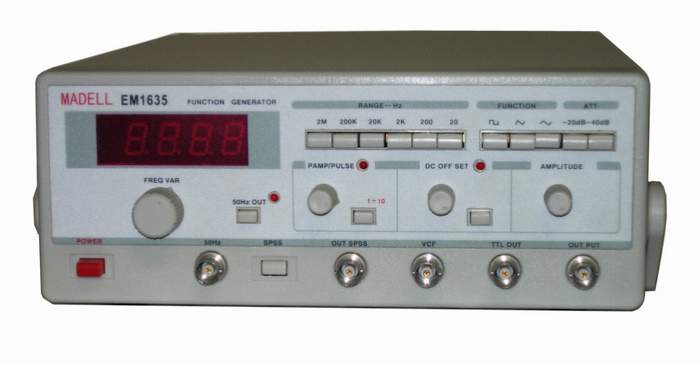

EM1635 (Display With LED)
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, TTL level, single pulse, 50Hz fixed sine
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
Square rise-time: ≤50nS
VCF: 0V-10V 1:100 3.5 digit display frequency with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg.
Price: $146

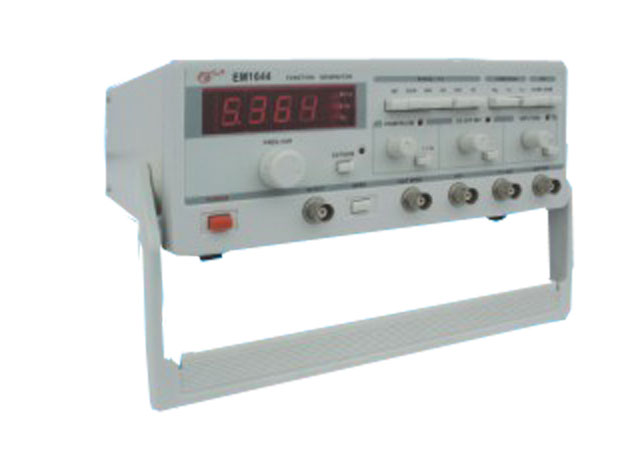

EM1644
Frequency range:0.5Hz-5MHz
Output Waveform: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
ATT: 20dB+40dB
EXT measurement frequency range: 0.1Hz-10MHz with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg
Price: $175


EM1656, with built-in oscilloscope
Frequency range: 1Hz-10MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Amplitude: 1mV-20Vp-p
Output impedance: 50Ω
FM: 1:50
Display: Frequency, Amplititude, Waveform
EXT Measuring function
Size:: 32x24x10(cm)
Weight: about 3kg
The built-in oscilloscope has limited functions and displays internal waveforms as well as external signals.
Sale Price: $215
