Please contact us directly if you are interested in any of the following products
|
|

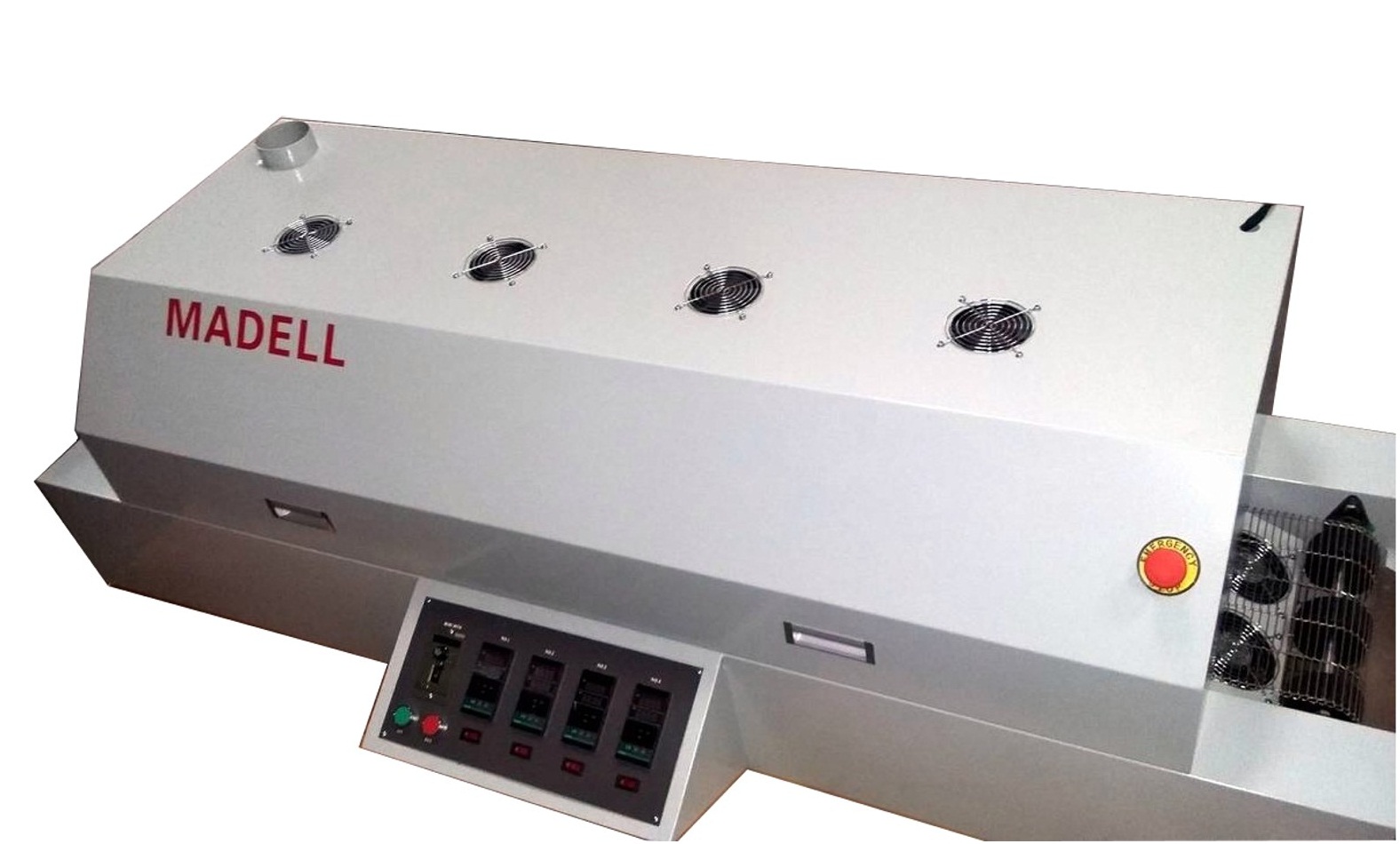

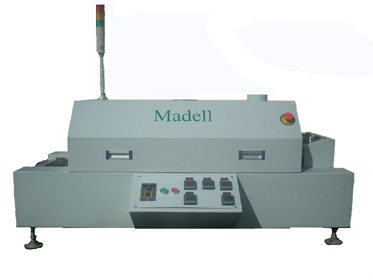

AE-R330 Tabletop IR+Convection Reflow Oven
Three top heating zones. Max. PCB width 280mm, power consumption 5KW, IR+convection(IR
generated hot air).
Easy to operate, small but can make excellent PCB's.
Through put 5-8 minutes.
This is a very simple to use yet reliable and easy to maintain reflow oven.
It can be used for regular SMT parts as well as BGA's.
No computer connection. Everything is controlled on the front panel: 3
zone temperatures and conveyor speed all can be adjusted separately.
Price Cut
$3495.00

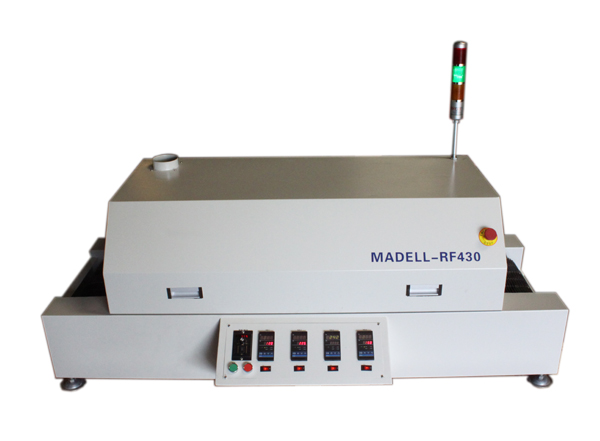

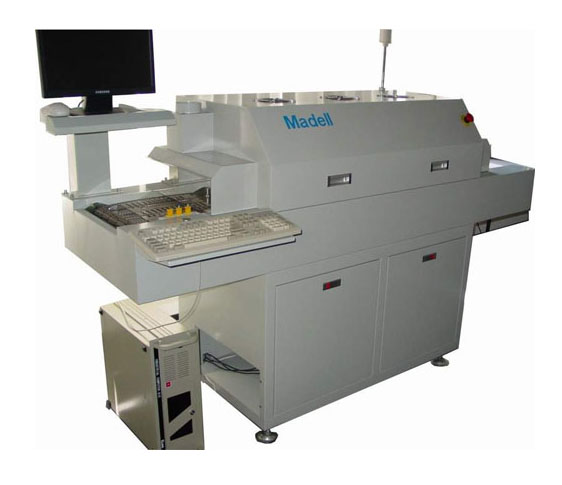

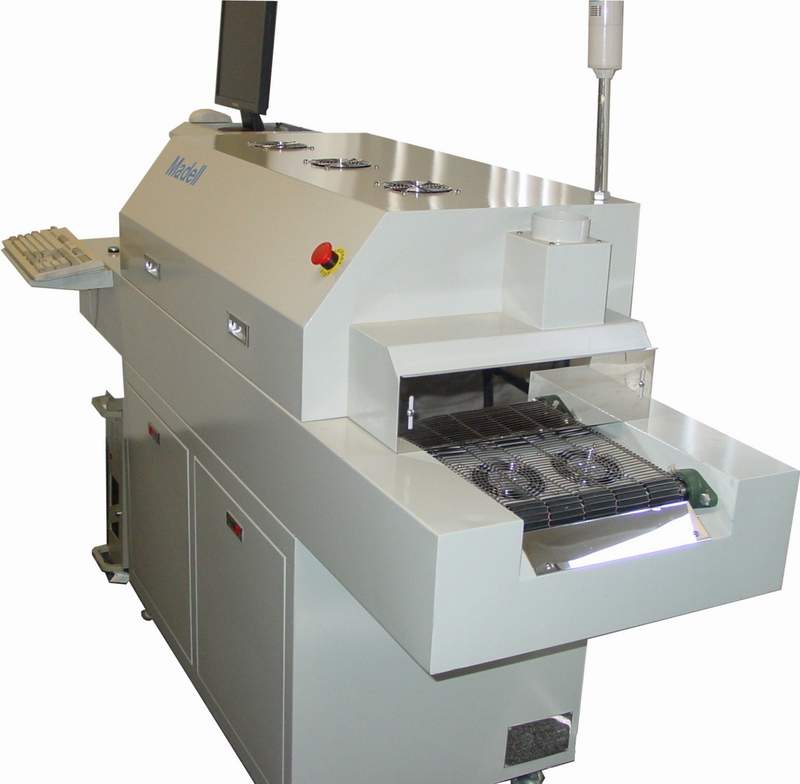

Medium Sized Infrared or Hot Air Reflow Ovens
Increase production with these medium sized reflow ovens.
Various models from 5KW to 7KW power consumption.
Selected models are in stock.
Computer monitor not included.
Price Cut
|
|
|
|
 |
|
 |
|
|
|
| See user's manual for details. |
| Small and Medium Sized Reflow Ovens |
| Model |
Heat mode |
Heating zones(up/down) |
Max PCB width |
Heat Length |
Computer |
Weight(Kg) |
|
| AE-R330 |
IR+convection |
3(3/0), 5KW, 1.8KW |
280mm |
860mm |
NO |
110 |
In stock |

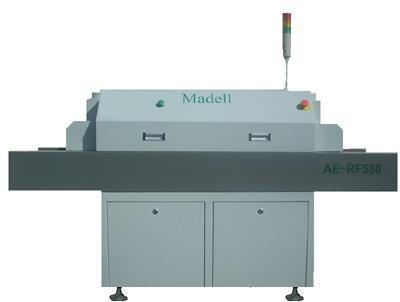

| AE-RF530 |
IR+convection |
5(3/2), 7KW, 2.5KW |
280mm |
1000mm |
NO |
180 |
|
| AE-RF530-C |
IR+convection |
5(3/2), 7KW, 2.5KW |
280mm |
1000mm |
YES |
190 |
|
| AE-F530 |
Full convection |
5(3/2), 7KW, 2.5KW |
280mm |
1000mm |
NO |
180 |
|
| AE-F530-C |
Full convection |
5(3/2), 7KW, 2.5KW |
280mm |
1000mm |
YES |
190 |
In stock |
| AE-RF630 |
IR+convection |
6(4/2), 8KW, 3KW |
280mm |
1200mm |
NO |
200 |
|
| AE-RF630-C |
IR+convection |
6(4/2), 8KW, 3KW |
280mm |
1200mm |
YES |
210 |
|
| AE-F630 |
Full convection |
6(4/2), 8KW, 3KW |
280mm |
1200mm |
NO |
200 |
|
| AE-F630-C |
Full convection |
6(4/2), 8KW, 3KW |
280mm |
1200mm |
YES |
210 |
|
| AE-F830 |
Full convection |
8(4/4), 12KW, 3KW |
280mm |
1200mm |
NO |
300 |
|
| AE-F830-C |
Full convection |
8(4/4), 12KW, 3KW |
280mm |
1200mm |
YES |
310 |
|
| AE-F3300-C |
Full convection |
6(3/3), 8KW, 3KW |
300mm |
1200mm |
YES |
300 |
|
|
| Temperature(all models) |
up to 300°C |
| Heating zone height(all models) |
880mm |
| Conveyor moving speed(all models) |
0 to 2000mm/min |
| Power supply(all models) |
AE-R330 220V, single phase, others 220V, 3 phase, 50/60Hz |

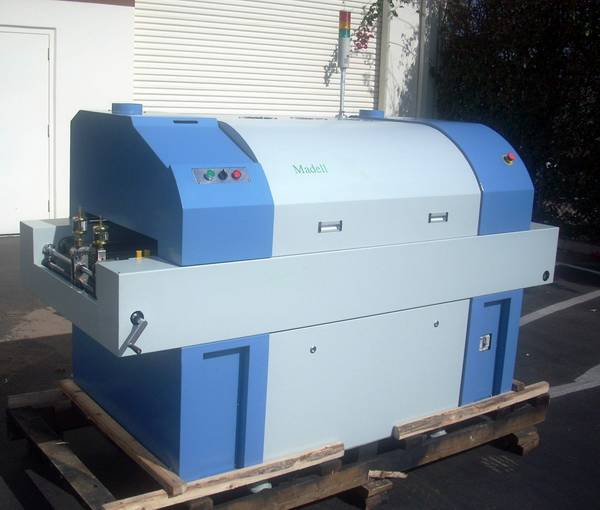

AE-3300-C
AE-7700 14 Zone Reflow Oven

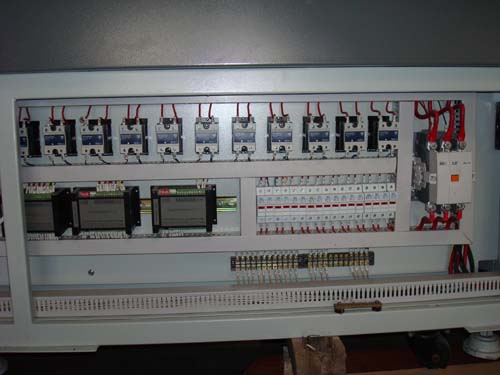

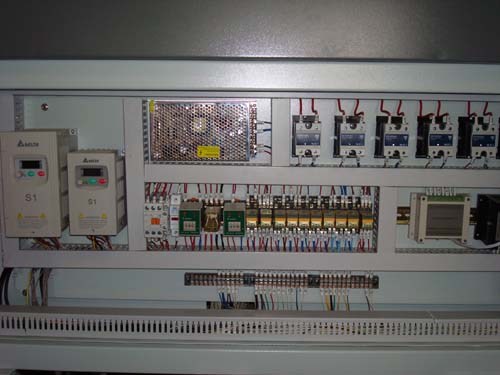

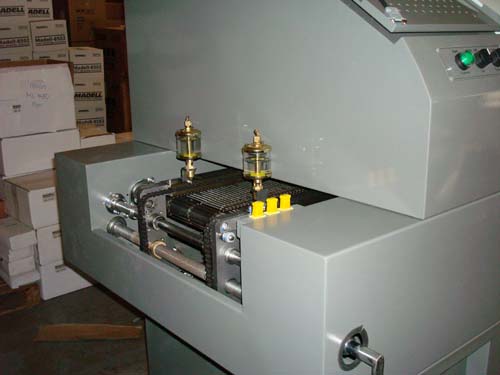

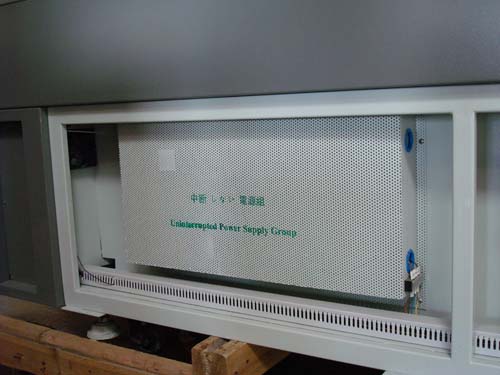

AE-8800 16 Zone Reflow Oven (IN STOCK)
AE-8800 16 Zone Reflow Oven Image

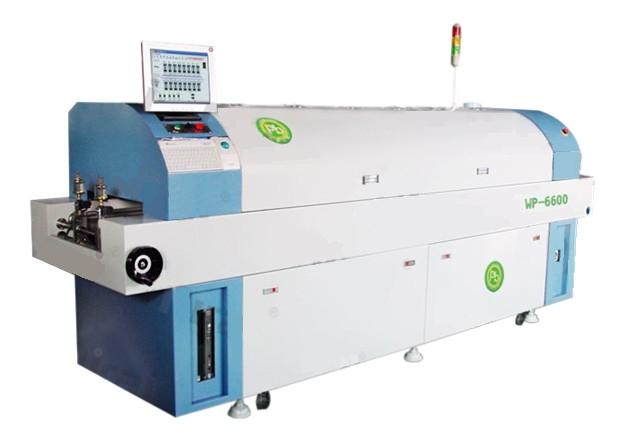

WP Series Lead Free Reflow Ovens
5/5,6/6,7/7,8/8 heating zones, 310°C
Max PCB width: 300mm, custome width to 420mm
WP-7070 in stock
|
Wave Soldering Conveyor
SMT conveyor
|
Conveyors Price : $1295.00
1. Belt width adjustable
2. PLC control
3. Belt conveyor
4. Standard electrical interface to connect with other machines
| Specifications |
|
PCB width
|
Max 350mm
|
|
PCB conveyor height
|
900±20mm
|
|
PCB conveyor direction
|
L-R R-L
|
|
PCB conveyor speed
|
0-1800mm/min
|
|
Power requirements
|
220V 50/60HZ single phase
|
|
Power consumption
|
80W
|
|
Weight
|
95kg
|
|
|
|
|
