PCB Board Cutting Machines



Manual Lead Trimmer/former

Price: $650.00



user's manual.





Taped Resistor Trimmer , SF-201
Price: $928.00
  • Size: L520*W380*H300mm
  • Weight: 24Kg
  • Power: AC 110V/220V 60Hz/50Hz
Model
SF-201S
SF-201U
SF-201W
SF-201F
A
5-40
6-40
6-40
4-18
B
3.6-15
3.6-15
3.6-15

C
Min. 0.6
Min. 1.2
Min. 1.2
Min. 4
D
1.5-8
.5-8
1.5-8
1.5-8
H



25Max
W
0.35-0.8
0.35-1
0.35-1.3
0.35-1
P



2.5-13.5
R



1
Capacity
40000pcs/h
84000pcs/h
40000pcs/h
40000pcs/h
All dimensions are in mm

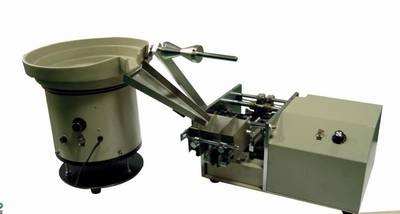

Loose, Taped Resistor Trimmer and former, SF-202
Price: $2240.00 (including vibration feeder)
  • Can be used for both loose and taped resistors
  • Size: L820*W500*H720mm
  • Weight: 30Kg
  • Power: AC 110V/220V 60Hz/50Hz
Model
SF-202U
SF-202F
A
6-40
4-18
B
3.6-15
1-20
C
Min. 1.2
Min. 3
D
1.5-8
1.5-8
W
0.35-1
0.35-1
H

Min. 25
P

2.5-13.5
R

1
Capacity
6000-10000 pcs/h
All dimensions are in mm

Manual Radial Lead Trimmer , SF-511
Price: $526.00
  • Size: L430*W320*H320mm
  • Weight: 17Kg
L
Leg length
3-20
W
Leg diameter
0.4-1.0
Capacity
36000PCS/H
All dimensions are in mm
Radial Taped Parts Trimmer , SF-512
Price: $938.00
  • Can be used for small to large parts, parts body diameter 3-10mm
  • Part lead length: 3-20mm
  • Lead diameter: 0.4-1.0mm
  • Speed: 60000 pcs/hour
  • Size: L520*W380*H300mm
  • Weight: 24Kg
  • Power: AC 110V/220V 60Hz/50Hz

Radial Taped Parts Trimmer and Former, SF-560
  • Can be used for small to large parts, parts body diameter 3-10mm
  • Part lead length: 3-20mm
  • Lead diameter: 0.4-1.0mm
  • Speed: 7200 pcs/hour
  • Size: L450*W450*H500mm
  • Weight: 22Kg
  • Power: AC 110V/220V 60Hz/50Hz


Radial Loose Parts Trimmer , SF-501
Price: $2312 (including vibration feeder)
  • Can be used for small to large parts, parts body diameter 3-10mm, length 3-25mm
  • Part lead length: 3-20mm
  • Lead diameter: 0.4-1.5mm
  • Speed: 5400 pcs/hour
  • Size: L500*W380*H450mm
  • Weight: 70Kg
  • Power: AC 110V/220V 60Hz/50Hz
Vibration Feeders
Jumper Wire Machine, SF-600
Price: $895
  • Full automatic
  • Adjustable for wire diameter from 5mm to 30mm
  • Size: L320*W390*H400mm
  • Weight: 40Kg
  • Power: AC 110V/220V 60Hz/50Hz

SF-306 Components Former
Price: $795
  • Pneumatic
  • Changable tooling to work with different parts
  • Tooling sold seperately
  • Size: L420*W300*H200m
  • Weight: 12Kg


SF-308 Components Former
Price: $895
  • Pneumatic
  • Changable tooling to work with different parts
  • Tooling sold seperately
  • Size: L420*W300*H200m
  • Weight: 12Kg
