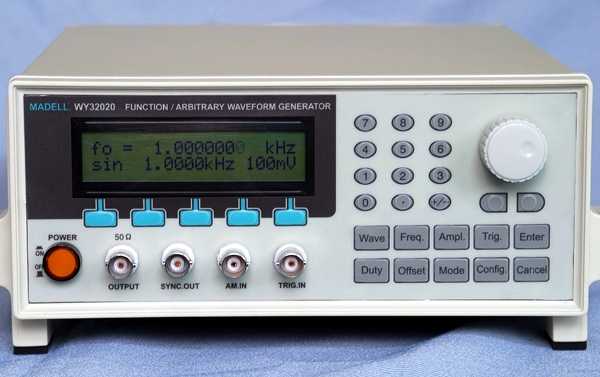

| WY Series DDS Signal/Function Generators |
| Model |
Max. Freq. (MHz) |
Arbitrary |
|
|
| WY1603 |
3 |
No |
|
|
| WY1606 |
6 |
No |
|
|
| WY1615 |
15 |
No |
|
|
| WY1620 |
20 |
No |
|
|
| WY1640 |
40 |
No |
|
|
| WY1650 |
50 |
No |
|
|
| WY32003 |
3 |
Yes |
|
|
| WY32006 |
6 |
Yes |
|
|
| WY32015 |
15 |
Yes |
|
|
| WY32020 |
20 |
Yes |
$795.00 |
 |
| WY32045 |
45 |
Yes |
|
|
|
This function generator can be used to output:
l
Built
in standard waveforms (sine, square, triangle, rise and fall
ramps, sin (x)/x, noise, log, pulses)
l
User defined waveforms if equiped with arbitrary function
l
Modulation
signals
l
Trigged
signals
l
Sweeping
signals
|
| Specifications |
| Built in waveforms |
Sine, square,triangle,rising ramp, falling ramp, white noise, Sin(x)/X,
rising exp., falling exp. |
| Arbitrary waveform |
8K(8192 points), 8 bits, 10MSa/S, stores 4 8K points waveforms |
| Frequency |
Sine waveform to unit max. freq. |
| Other waveforms |
1mHz~100KHz |
| Display |
8 digits LED, resolution 100μHz, 10ppm |
| Stability |
50ppm(0°C~40°C), 1ppm/hour |
| Output Amplitude |
2mVp-p~20Vp~p(no load), 1mVp-p~10Vp-p(50Ω) |
| Sine distortion |
<20KHz:-60dBc, <1MHz:-50dBc,<10MHz:-40dBc,<20Mhz:-30dBc |
| Modulations |
Internal AM,External AM, FM, FSK, ASK and external trig |
| Sweeping |
Linear and Log |
| Sweeping rate |
10μS~100S |
| Sweeping range |
0.1Hz~unit max. frequency |
| Dimensions |
220(W)x105(H)x290(D) mm |
|
 User's manual. See details inside the user's manual. |
| Waveform generating software. Use this program to create arbitrary waveforms. It works without connecting
to the function generator. Drawing your waveform with either line or freehand
methods. We can download to the demo unit if you email us the waveform
you create. See how it looks through our network oscilloscope NTScoep-2000. |
|
|
|
