Programmable DC Electronic Loads


3710A 0-360V/150W
     Sale Price: $475.00

3711A 0-360V/300W
     Sale Price: $595.00

User's Manual

Introduction:

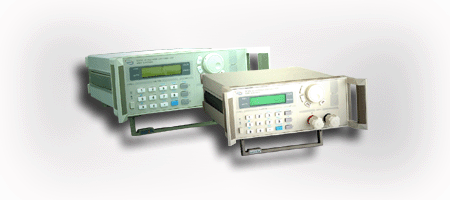

AR 3700 series electronic load is a single input programmable DC electronic load. It provides a convenient way to test batteries and DC power supplies. It offers constant current mode, constant resistance mode and constant power mode. The backlight LCD, numerical keypad and rotary knob make it much easier to use. Up to 10 steps program can be stored.Controlled by PC is also available. It is an essential instrument for design,test and manufacture of many suitable products.

Features:
LCD display with backlight
High resolution measurement
CC/CP/CR mode
Number keypad and rotary knob
Multifunction menu
Over voltage / over current / over power / over temperature / polarity reversion protection
10 steps program
Can be controlled by PC
Can be connected in parallel
Specifications:
Type
3710A
3711A
Number of inputs
1
1
Input voltage
0~360V DC
0~360V DC
Input current
0~30A DC
0~30A DC
Input power
0~150W
0~300W
Voltage accuracy
0.000~3.999V:0.2%+3mV
0.000~3.999V:0.2%+3mV
4.00~35.99V:0.2%+30mV
4.00~35.99V:0.2%+30mV
36.0~360.0V:0.2%+300mV
36.0~360.0V:0.2%+300mV
Current accuracy
0.000~2.999A:0.2%+3mA
0.000~2.999A:0.2%+3mA
3.00~30.00A:0.2%+30mA
3.00~30.00A:0.2%+30mA
Minimum resolution
Voltage 1mV, Current 1mA
Voltage 1mV, Current 1mA
Lowest Conductive Resistance
<0.08Ω
<0.08Ω
Ripple
<10mVpp
<10mVpp
Interface
RS232/RS485/USB*
Protection
Over voltage / over current / over power / over temperature / polarity-reversion
Program Memory
10 steps program, EEPROM
AC Input
110V/220V AC +/-15%, 47~63Hz
Operating environment
0~50° C, 80% RH
Software
Electronic load software, ActiveX and DLL tools for VB,
VC++, DELPHI, LABVIEW
Weight
5.0Kg
Dimensions
212.6mm W x 88.1mm H x 250mm D
Standard Accessories
Userís manual, AC cable, handle bars, software CD
Optional Accessories
RS232 adapter, RS485 adapter, USB adapter, Mounting rack

 * Optional adapter required

Accessories

3311 adapter

3312 adapter

3313 adapter

3314 adapter
3311 adapter
3311 adapter is a RS232 to TTL leve converter. AR 3600/3700ís com port is a TTL level serial port. This adapter can connect 3600/3700 series products to any device equipped with RS232 interface

3312 adapter
3312 adapter is a USB to TTL leve serial port converter. AR 3600/3700ís communication interface is a TTL level serial port. This adapter can connect 3600/3700 series product to the USB port of PC.

3313 adapter
3313 adapter is a RS232 to RS 485 converter. It converts the RS232 signals to the RS485 differential signals A+/B-. This converter allows access to a multi-drop RS485 network or connection to a point-to-point RS485 device.

3314 adapter
3314 adapter is a RS485 to TTL leve converter. AR 3600/3700ís communication interface is a TTL level serial port. This converter can connect AR 3600/3700 to other devices which have the RS485 interface, and allows access to a multi-drop RS485 network or connection to a point-to-point RS485 device

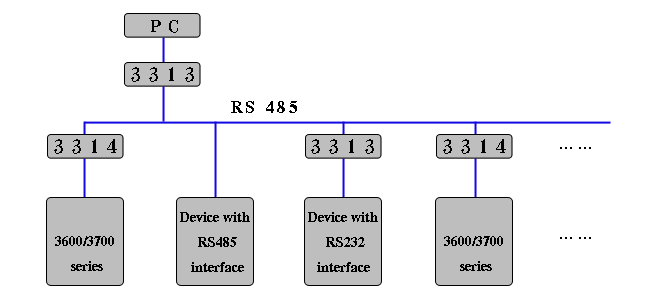

3313, 3314 application chart:
