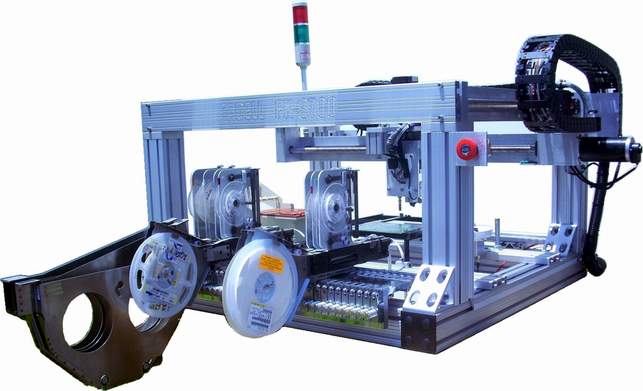

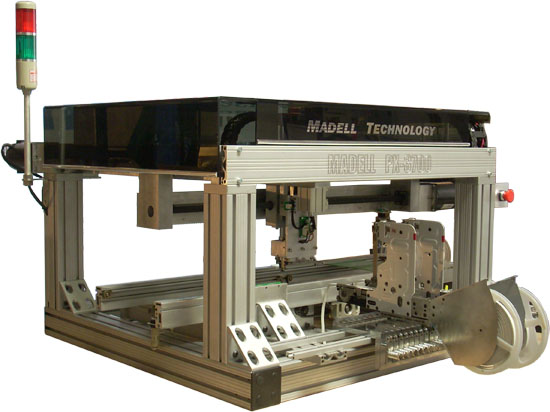

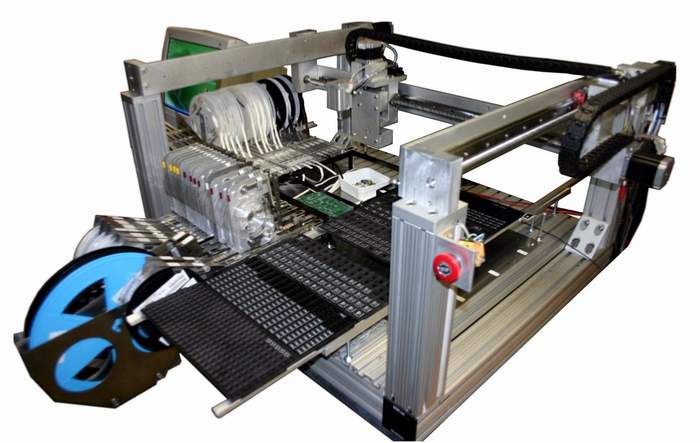

PX3700 Basic machine: $17,450

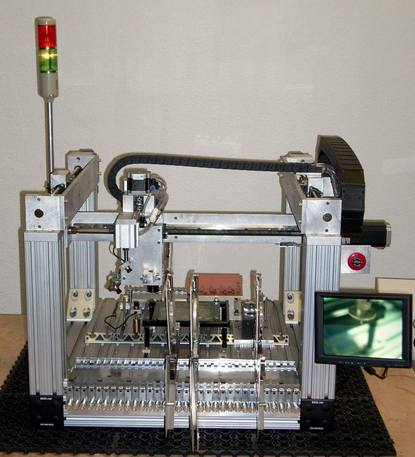

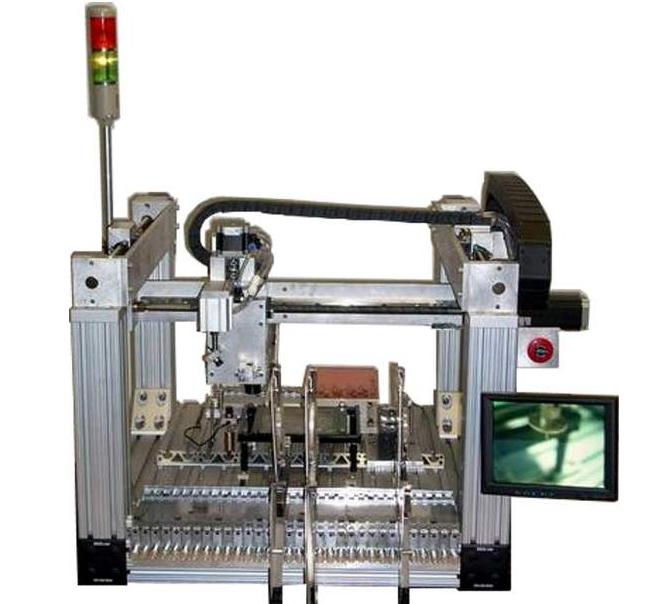

PX3702 Basic machine: $14,450

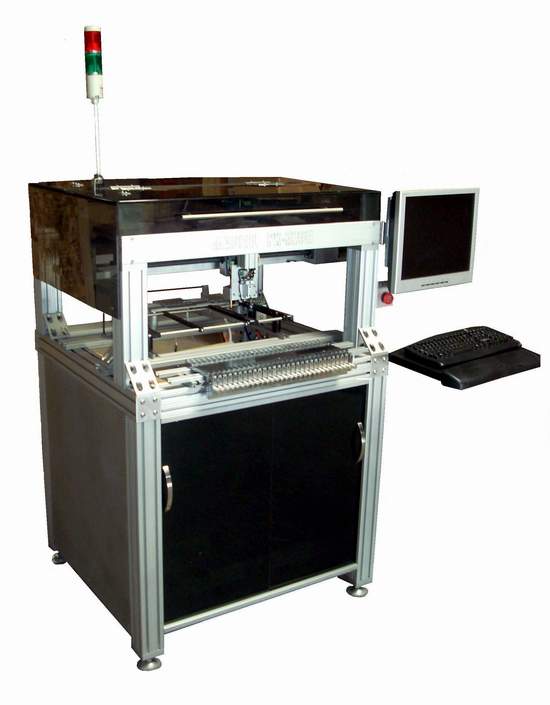

PX3705 basic machine: $19,950

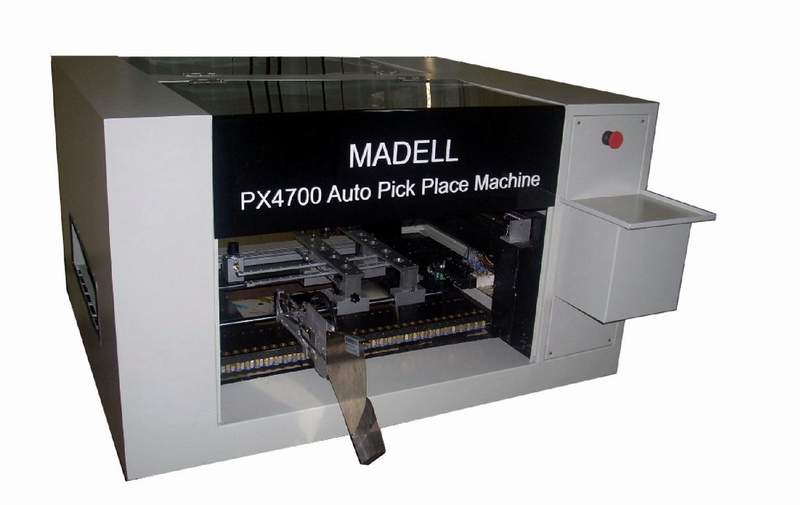

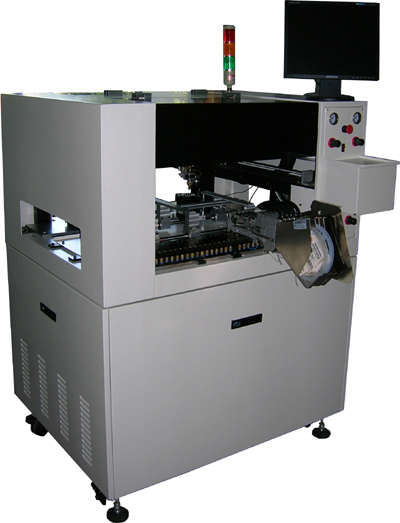

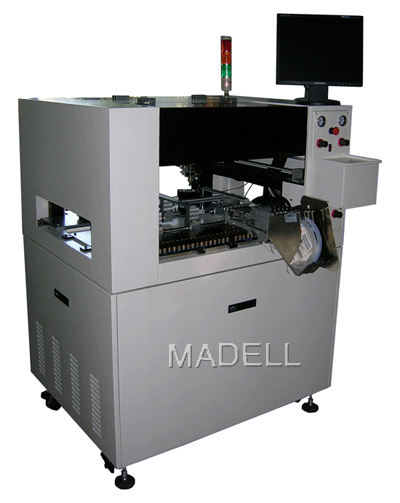

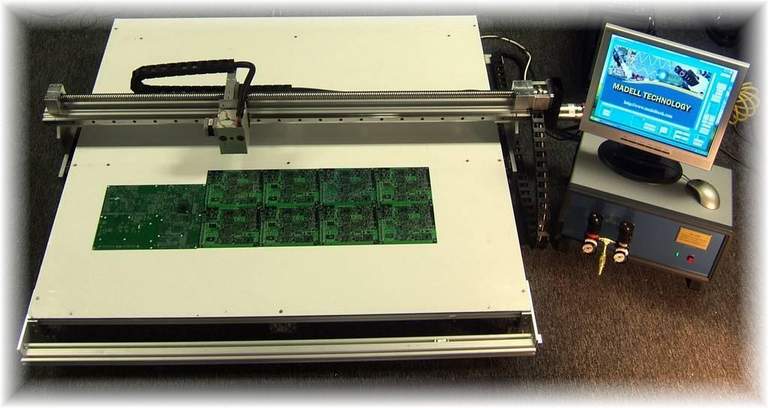

PX4700 basic machine: $19,950
Turnkey packages available

Windows graphic software
- 3000-3500 estimated pph(parts per hour)
- 21" x 29.5" working area (PX3700)
- Placement of 0402 standard (upgrade for smaller parts)
- Computer vision automatic centering system for IC's (SOP, QFP, BGA) and
better placement of small parts, software fly vision centering, included
- Fully programmable digital Z-axis and Theta rotation angles
- X and Y axis 0.0005" resolution, 0.001" positioning, 0.045°
rotational resolution
- 80 feeder capacity-standard for PX3700, 40 for PX3702, 24 for PX3000
- Uses widely available and easily obtainable feeders
- Automatic PCB board position correction with fiducial recognition included
- Automatic post-place vision inspection
- CAD file convert function
- Selective soldering function built in (optional hot air gun mounting adaptor)
- 12 month full factory warranty - parts & labor
- Easy to use graphic software for quick programming. Programming can be
done with teaching video camera, on screen Gerber file graphics or CAD
file
- 110V AC 60Hz, or 220 V AC, 50Hz, 750 watts electrical
- 60 psi shop air required
- PX3700 180 lbs. , PX3702 120 lbs, net weight
- 38"w x 40"d x 21"h
- MADE IN USA
- Machine customization available
| Max. Working Areas (X-Y) |
| Model |
PX3700, PX3705 |
PX3702 |

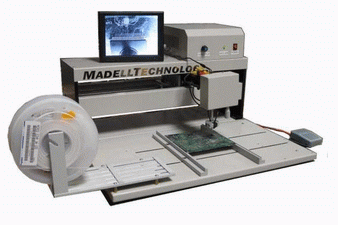

PX3000 |
PX4700 |
SX1005 |

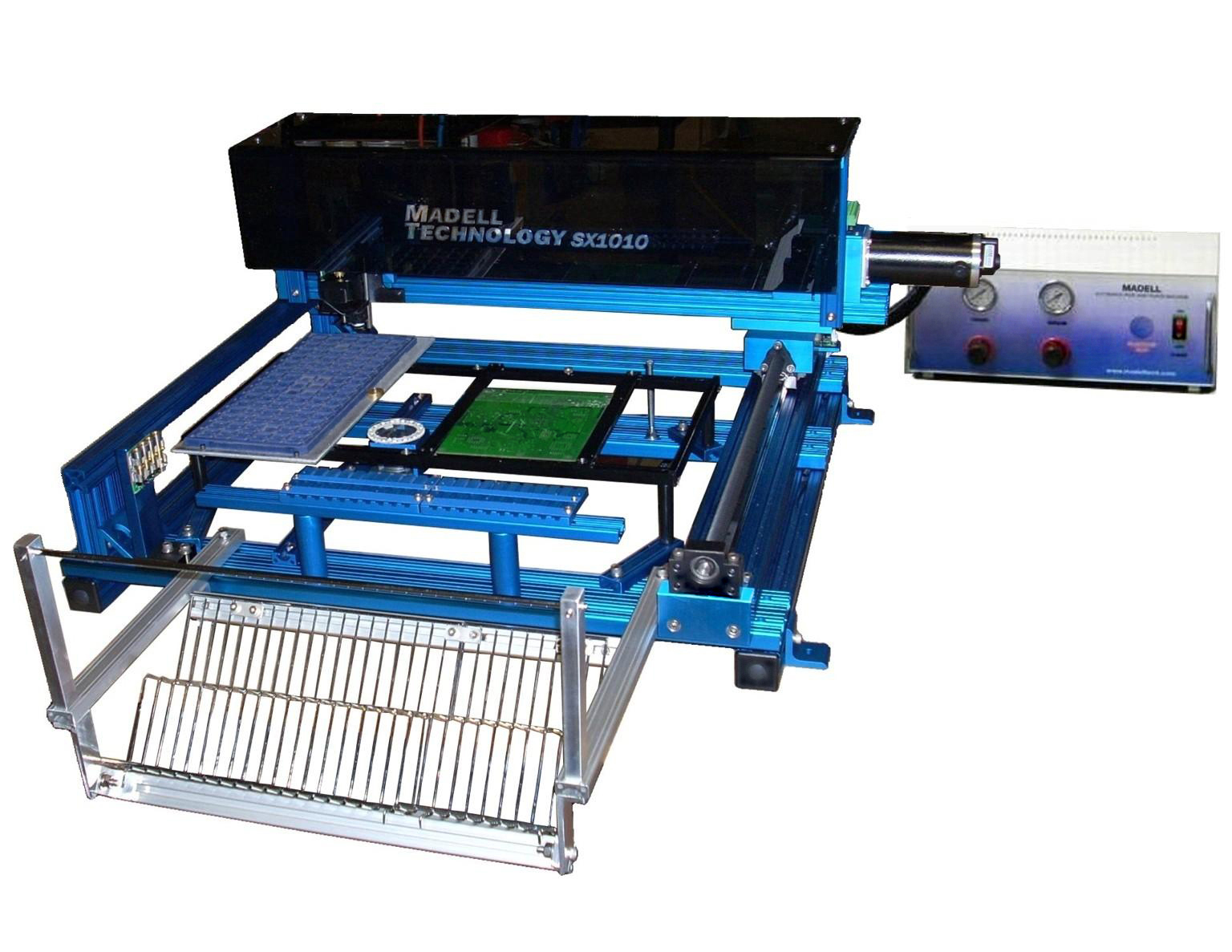

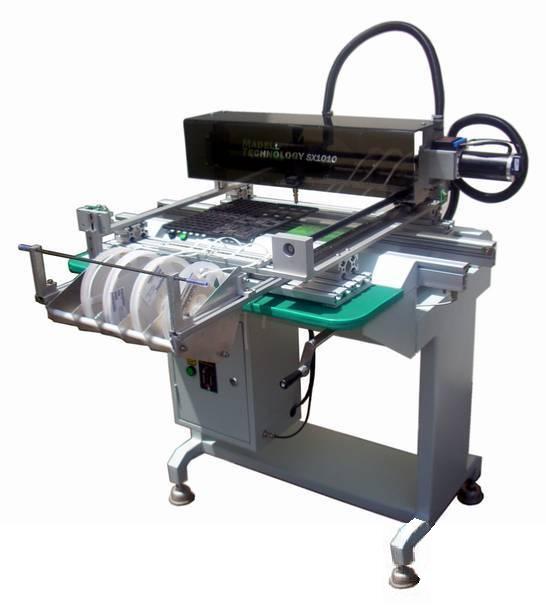

SX1010 |
| Without feeders at rear |
600x400mm |
440x300mm |
600x270mm |
550x490mm |
250x300mm |
450x450mm |
| With feeders at rear |
600x350mm |
440x250mm |
|
550x440 |
|
|
| Note: vibration feeders, tray fixtures and other items placed on the machine
will take working space |
|
Options and Feeders:
- Windows XP computer
- Additional up looking cameras (only fixed lens can be used on the video
camera for computer vision. Different cameras should be used for small
and big parts for best results. Also working speed can be improved if more
cameras are placed at different locations close to feeders)

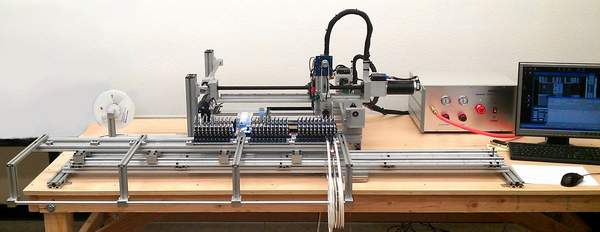

- Tape feeder carrier, required to use tape feeders
- Automatic nozzle changer
- First and second paste dispensing adaptor and control software
- Hot air rework station mounting adaptor
- Paste dispenser Gerber file translator software from Dockerty Electronics

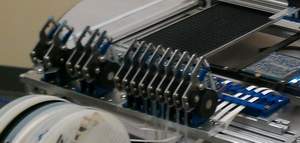

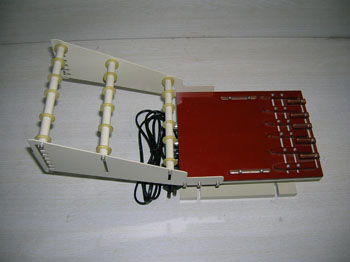

- Five channel vibratory feeder for tube parts
- 8mm Feeder: 8x2, 8x4 (paper or plastic)
- 12mm Feeder: 12x4, 12x8, 12x12
- 16mm Feeder: 16x8, 16x12
- 24mm Feeder: 24x8, 24x12, 24x16
- 32mm Feeder: 32x12, 32x16, 32x24
- 44mm Feeder: 44x16, 44x24, 44x32

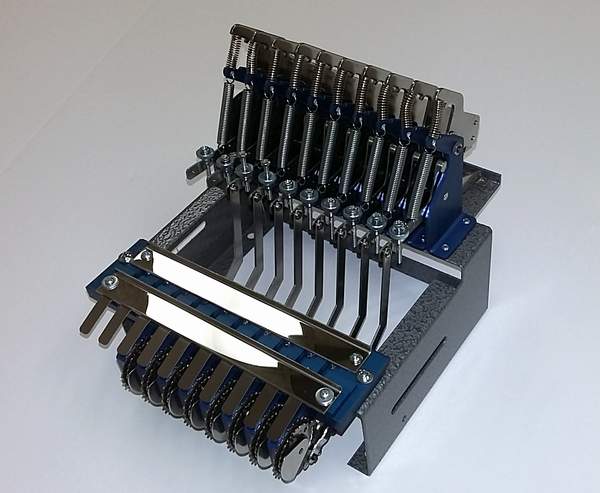

- Low cost manual Feeder

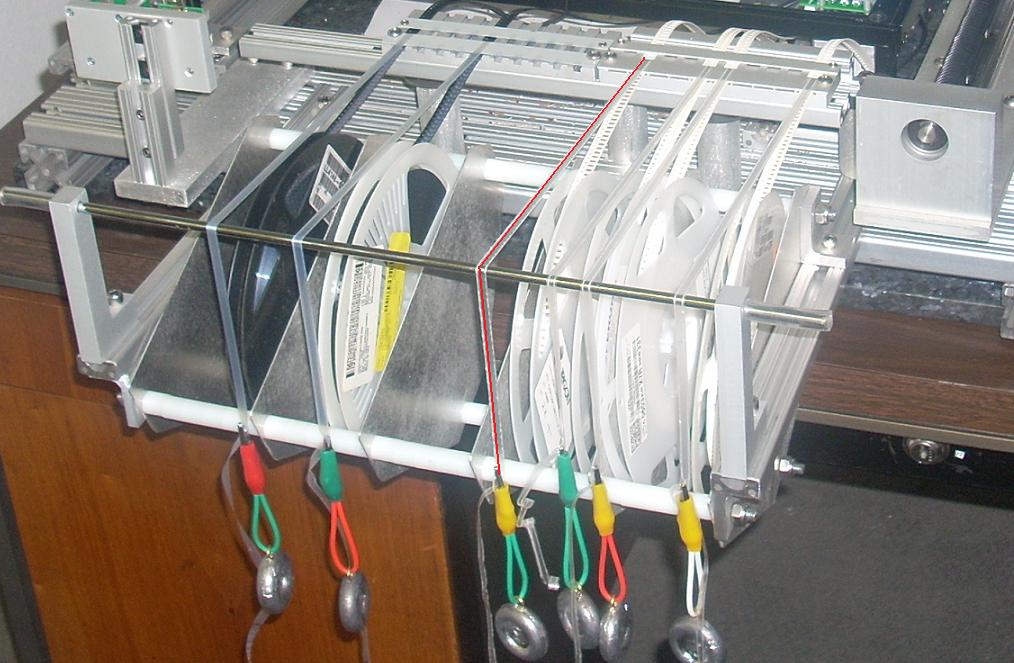

- Option for SX feeders
More videos
Pick place small parts
Pick place with inspection
PX3705
|
