LCD Products


1.Standard Character LCD

Type
Character Font
Module Size (mm)
View Area (mm)
LCD Type & Colour
Display Type
Backlight
Control IC & Package
5x8
80x36x9/15
65x14
STN:Yellow-Green
STN:Gray
FSTN
Positive
LED,EL
KS0066,COB
5x8
84x44x10/14
61x17
STN:Yellow-Green
STN:Gray
FSTN
Positive
LED,EL
KS0066,COB
5x8
80x36x9/15
65x14
STN:Yellow-Green
STN:Gray
FSTN
Positive
LED,EL
KS0066,COB
5x8
80x36x10/15
66x16
STN:Yellow-Green
STN:Gray
FSTN
Positive
LED,EL
KS0066,COB
5x8
116x37x10/14
83x18.6
STN:Yellow-Green
STN:Gray
FSTN
Positive
LED,EL
KS0066,COB
5x8
77x47x11
64x21.5
STN:Yellow-Green
STN:Gray
FSTN
Positive,
Negative
LED,EL
KS0075,COB

2.Graphic LCD

Type
Dots x Dots
Module Size (mm)
View Area (mm)
LCD Type & Colour
Display Type
Backlight
Control IC & Package
122x32
76.5x29x5.7
60.5x21
STN:Yellow-Green
Positive
EL
SED1520,COB
122x32
65.6x29.2x5.5
55x19
STN:Yellow-Green
FSTN
Positive
LED
SED1520,COB
122x32
93x27.5x13
60x18
STN:Yellow-Green
FSTN
Positive
LED
SED1520,COB
122x32
84x44x13
60x20
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
SED1520,COB
128x64
113.2x65.2x11/13
73x39
STN:Yellow-Green
Positive
LED,EL
HD61202,SMT
128x64
113.2x65.2x11/13
73x39
STN:Yellow-Green
Positive
LED,EL
KS0107,COB
128x64
78x70x13
62x44
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB
128x64
78x70x13
62x44
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB
128x64
93x70x13
70x39
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB
128x64
78x70x13
62x44
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
T6963C,COB,SMT
128x64
54x50x8
44.5x30
STN:Yellow-Green
FSTN
Positive
EL
KS0107,COB
128x64
54x50x8
44.5x30
STN:Yellow-Green
FSTN
Positive
EL
KS0107,COB
128x128
57.5x57.5x11.7
51x51
FSTN
Positive
EL
SSD1852,TAB
160x80
110X65.8X10
77x51
STN:Yellow-Green
Positive
LED
*,SMT
160x128
129X102X12.8/19.2
101x82
STN:Yellow-Green
Positive
LED
T6963C,SMT
168x65
90X38X7
69.5x30
FSTN
Positive
LED
SED1575,TAB
192x64
100x60x13
84x31
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB
192x64
120x62x9/13
104x39
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB
192x64
130x65x9/13
104x39
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED
KS0107,COB

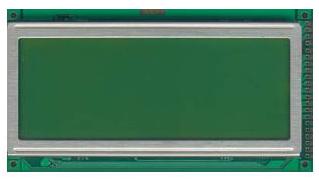

240x64
180x65x15
132x39
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED,CCFL
T6963C,SMT
240x128
144x104x14
114x64
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED,CCFL
T6963C,SMT
240x128
144x104x13
114x64
STN:Yellow-Green
STN:Blue
FSTN
Positive,
Negative
LED,CCFL
T6963C,SMT

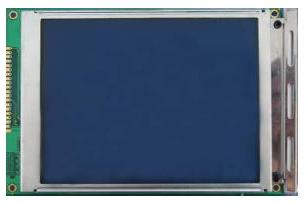

320x240
167x109x13
124x94
STN:Blue
FSTN
Positive,
Negative
LED,CCFL
SED1335,SMT

3.Standard Segment LCD

Type
Number of Digit 8
Module Size (mm)
View Area (mm)
Font High
Display Type
LCM045A
4
61.5x33x*
45x19
15
TN , Positive , Reflective/Transflective
LCM046
4
38x22x*
27x9.5
8

TN , Positive , Reflective/Transflective
LCM061A
6
76.5x43x*
67x18
14

TN , Positive , Reflective/Transflective
LCM067
6
76x43x*
67x18
14
TN , Positive , Reflective/Transflective
LCM0816A
8
105x45x*
89x17.7
13
TN , Positive , Reflective/Transflective
LCM0826A
8
67x36x*
61x17.5
9
TN , Positive , Reflective/Transflective
LCM0826B
8
67x36x*
61x17.5
9
TN , Positive , Reflective/Transflective
LCM01DA/DB
1
45x85x27.5
42x68
57
TN , Positive , Reflective/Transflective
LCM102
10
66x35x*
56x12
8
TN , Positive , Reflective/Transflective
LCM103
10
66.5x33.5x*
56x12
8
TN , Positive , Reflective/Transflective
LCM109A
10
173x78.5x*
146x27
22
TN , Positive , Reflective/Transflective
LCM1010
10
59x39x*
35x18.8
6

TN , Positive/ Negative , Reflective/Transflective
LCM141
14
77x43x*
62x27
11/9
TN , Positive , Reflective/Transflective
LCM141C/R
14
77x43x*
62x27
11/9
TN , Positive , Reflective/Transflective
QSB-01
3 1/2
79x43x*
46x19
12.7
TN , Positive , Reflective/Transflective

4.Customized LCD

Type
Number of Digit 8
Type
Number of Digit 8
Type
Number of Digit 8
Type
Number of Digit 8
LCM041
4
LCM072
7
LCM0817
8
LCM0845
8
LCM051
5
LCM073
7
LCM0818
8
LCM0846
8
LCM052
5
LCM074
7
LCM0819
8
LCM091
9
LCM0611
6
LCM075
7
LCM0820
8
LCM092
9
LCM064
6
LCM081
8
LCM0821
8
LCM093
9
LCM0612
6
LCM082
8
LCM0831
8
LCM104
10
LCM065
6
LCM083
8
LCM0832
8
LCM105
10
LCM0613
6
LCM084
8
LCM0833
8
LCM106
10
LCM0614
6
LCM085
8
LCM0834
8
LCM108
10
LCM066
6
LCM086
8
LCM0835
8
LCM1011
10
LCM060
6
LCM089
8
LCM0836
8
LCM1012
10
LCM068
6
LCM0810
8
LCM0837
8
LCM1013
10
LCM069
6
LCM0811
8
LCM0838
8
LCM1016
10
LCM0615
6
LCM0812
8
LCM0839
8
LCM121
12
LCM0610
6
LCM0813
8
LCM0840
8
LCM122
12
LCM0618
6
LCM0814
8
LCM0841
8
LCM142
14
LCM071
7
LCM0815
8
LCM0842
8
LCM811
81

5.Other LCD Products

Name
Function Characteristic

SED1335

LCD Control Module

1.It is mostly used to control LCM, then support characters and graphics synthesized;
2.It may synthesize graphics of three screen and support scroll mode;
3.It can supply interface of 6800 or 8080 MPU;
4.Low power loss, operating voltage: 2.7 ~ 5.5V.

QYCX2002ZK

LCD Control Module Including Chinese

1.It includes about 7602 simplified Chinese characters, and can be applied 320x240 dots matrix LCM;
2.It supports 4 or 8 bit 6800/8080 MPU interface;
3.It can adjust power supply for LCD drive by software, and sets up boldfaced fonts and row spacing;
4.User may construct Chinese characters by self;
5.Operating voltage: 3 ~ 5V.

PC-LCD Control Module

It may communicate to PC by the way of series, so that using computer programming can control LCM to display.
EL Inverter

EL Inverter Model: EL-5V001, EL-5V003.
CCFL Inverter

CCFL Inverter Model: QCCFL-01.
